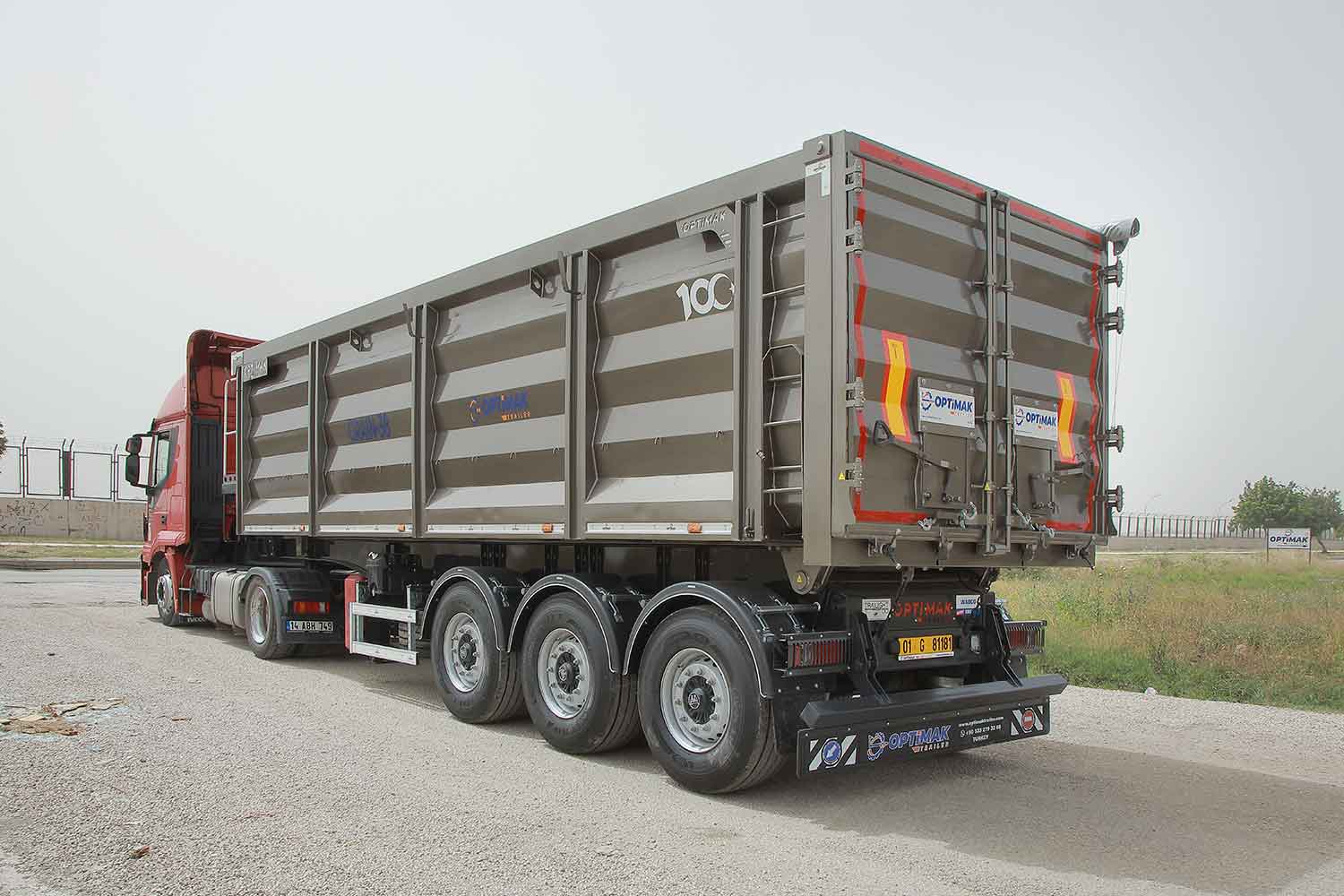

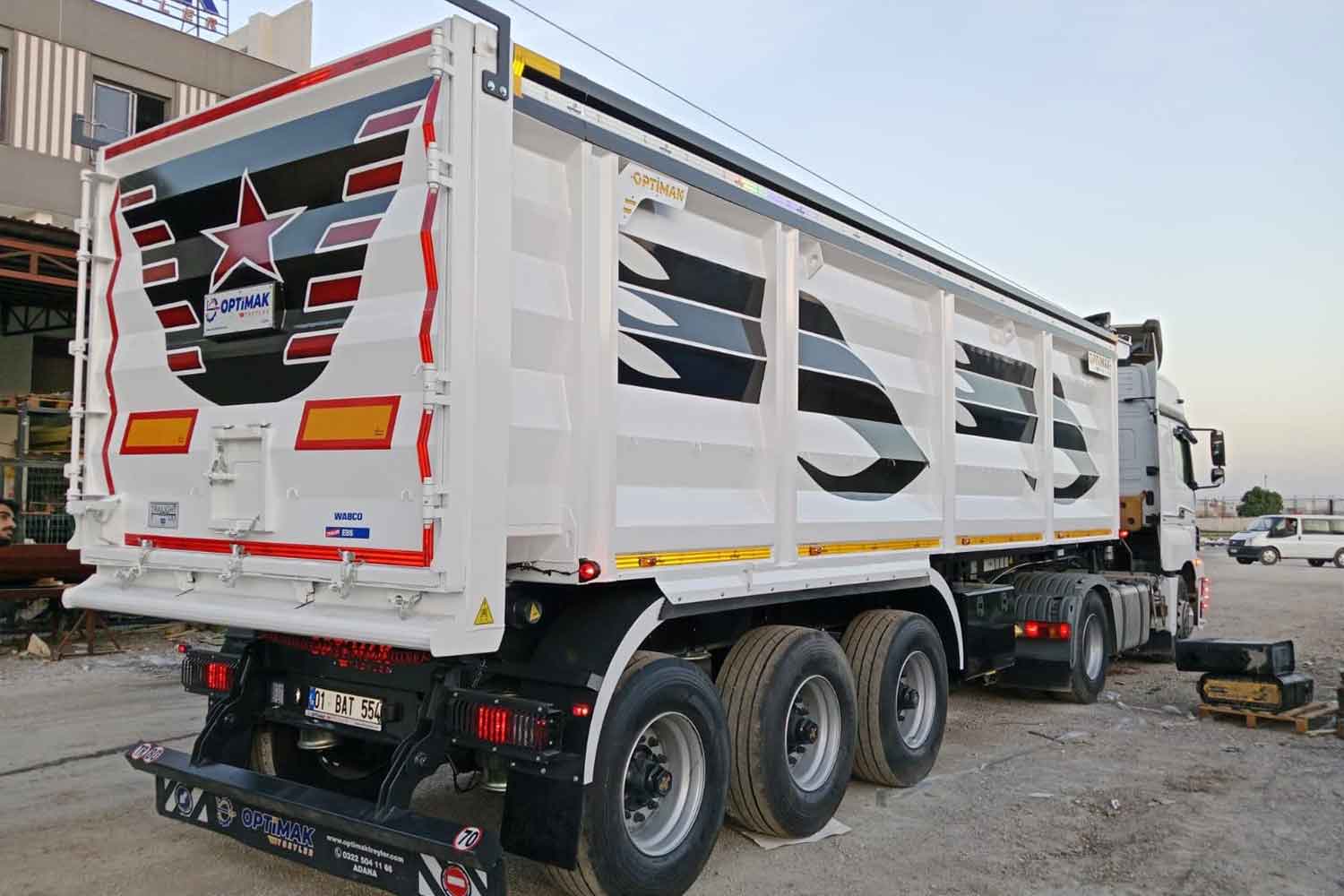

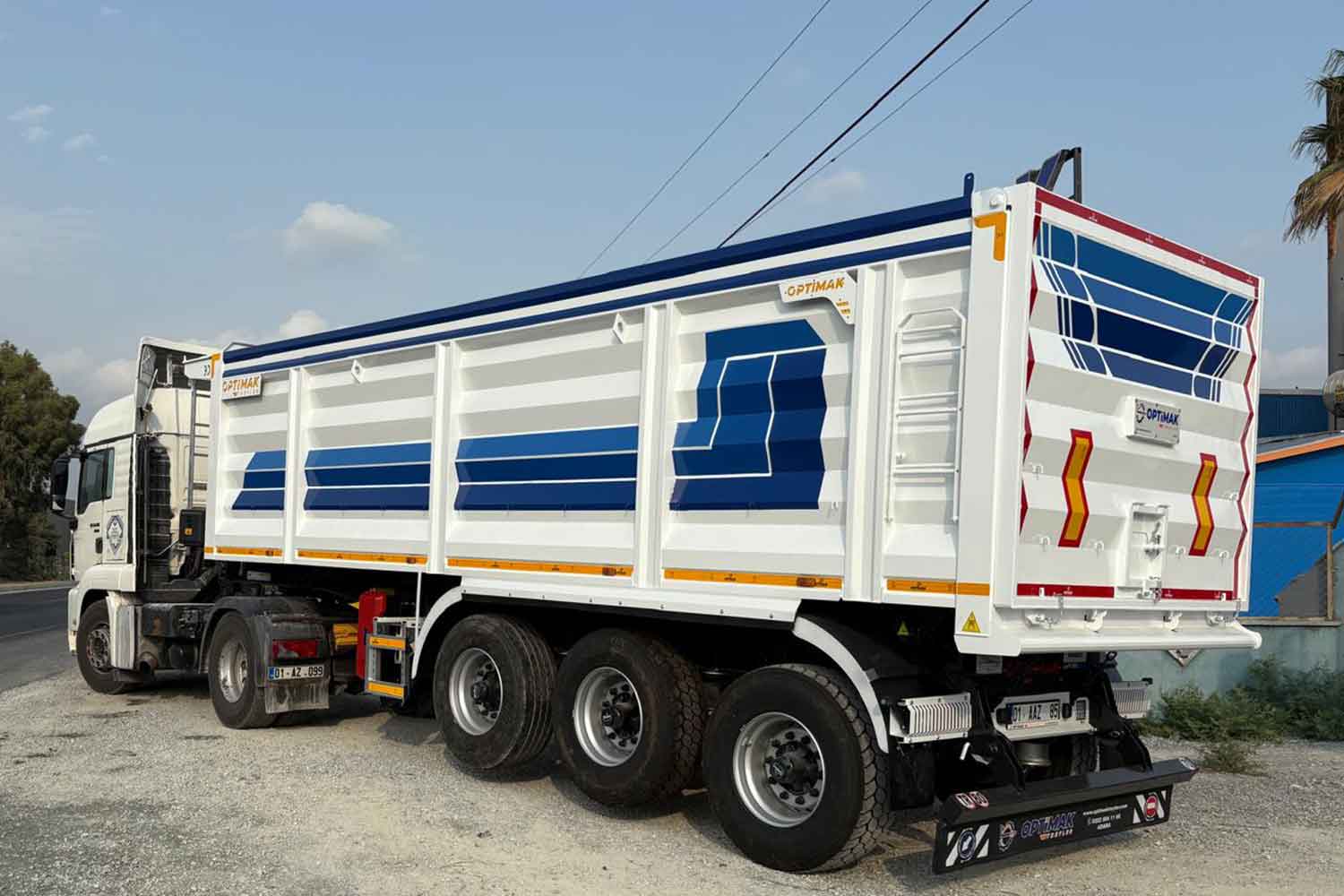

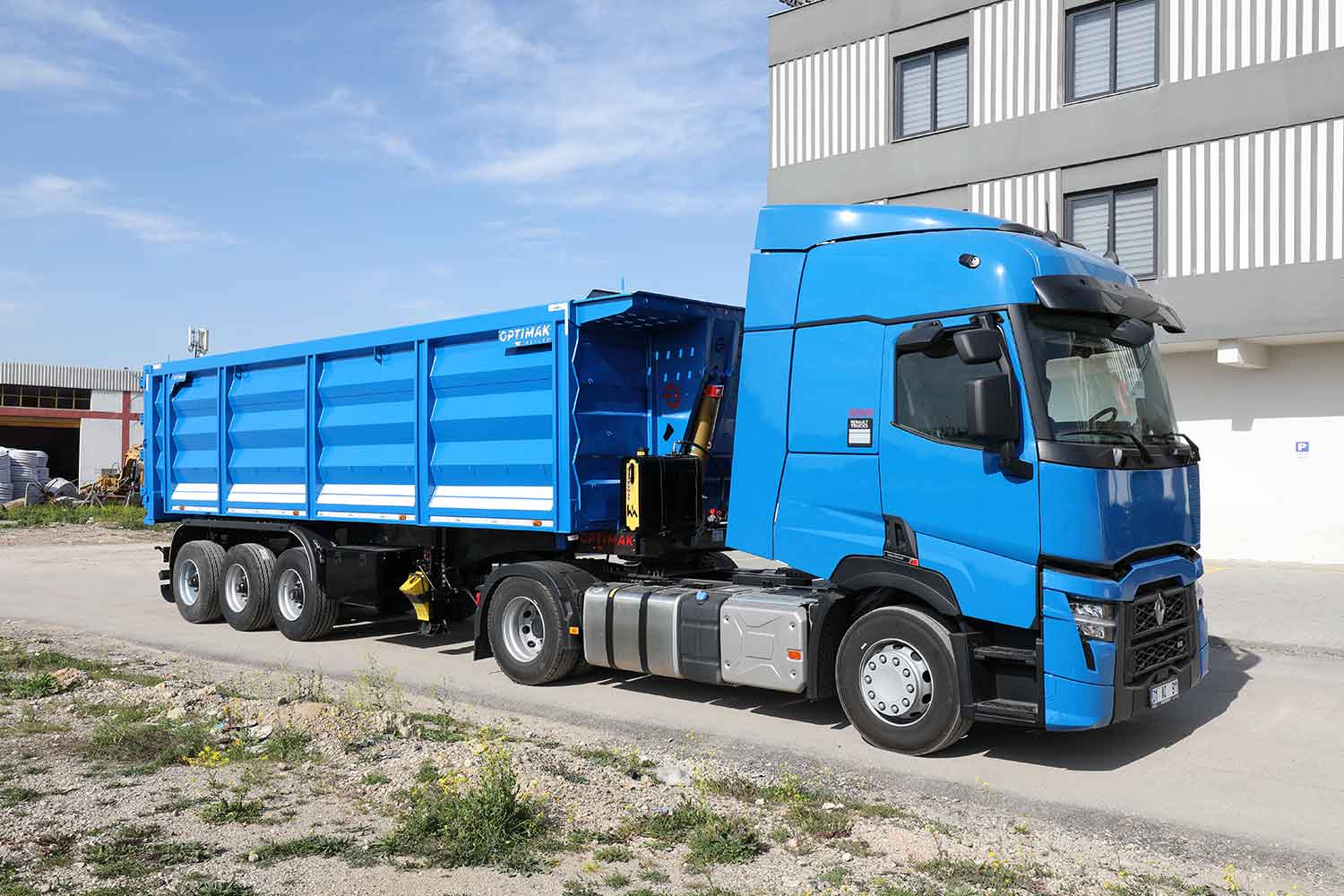

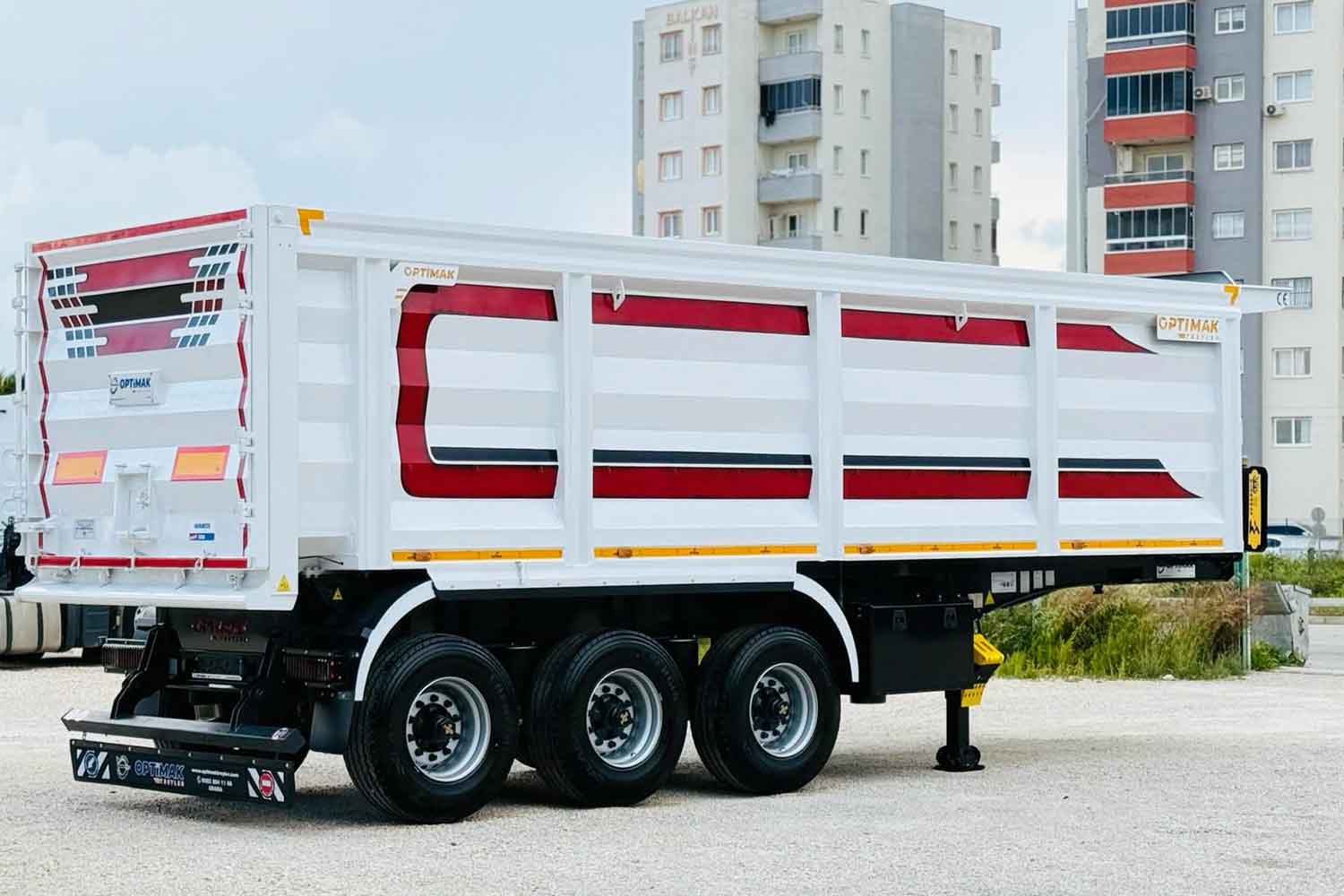

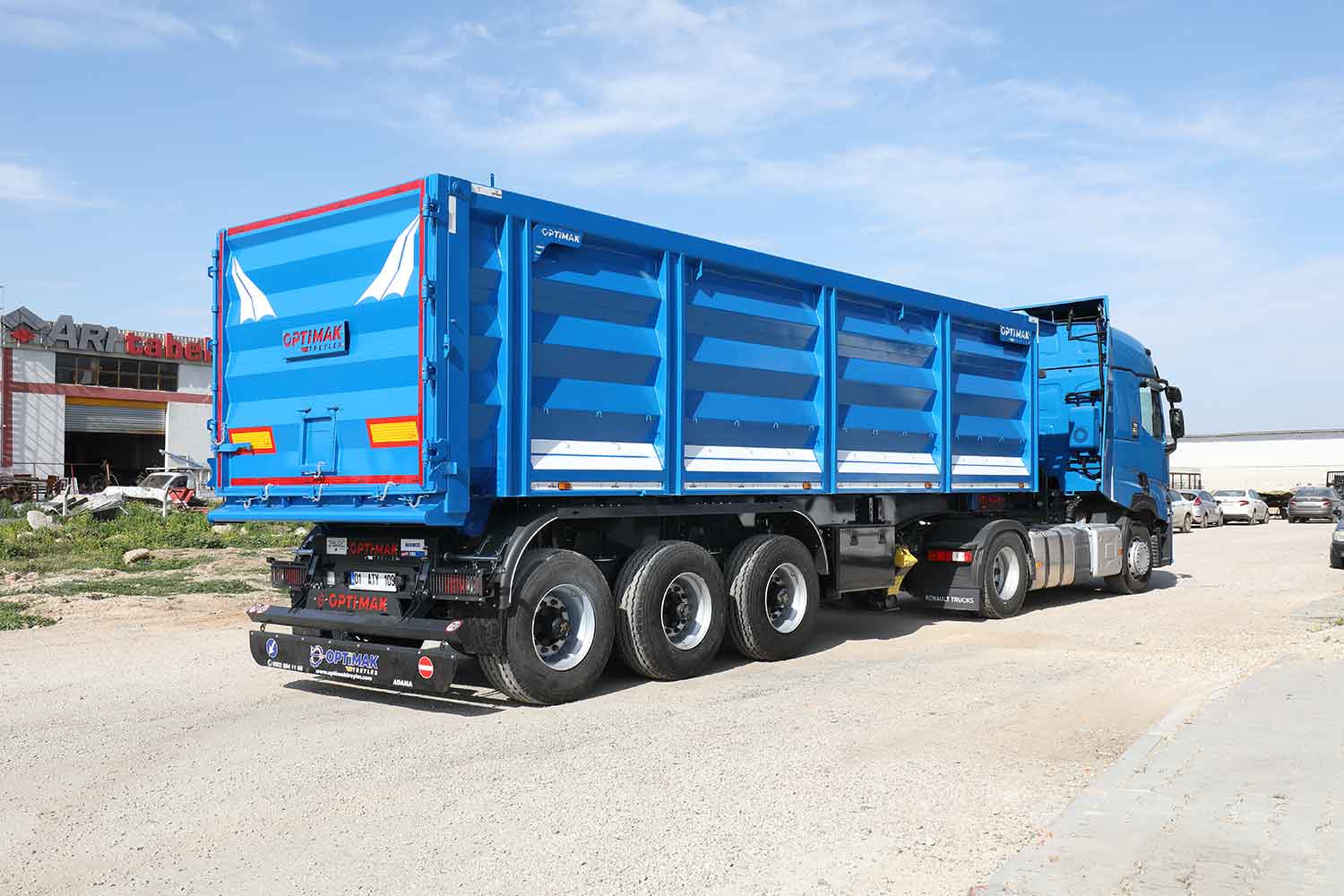

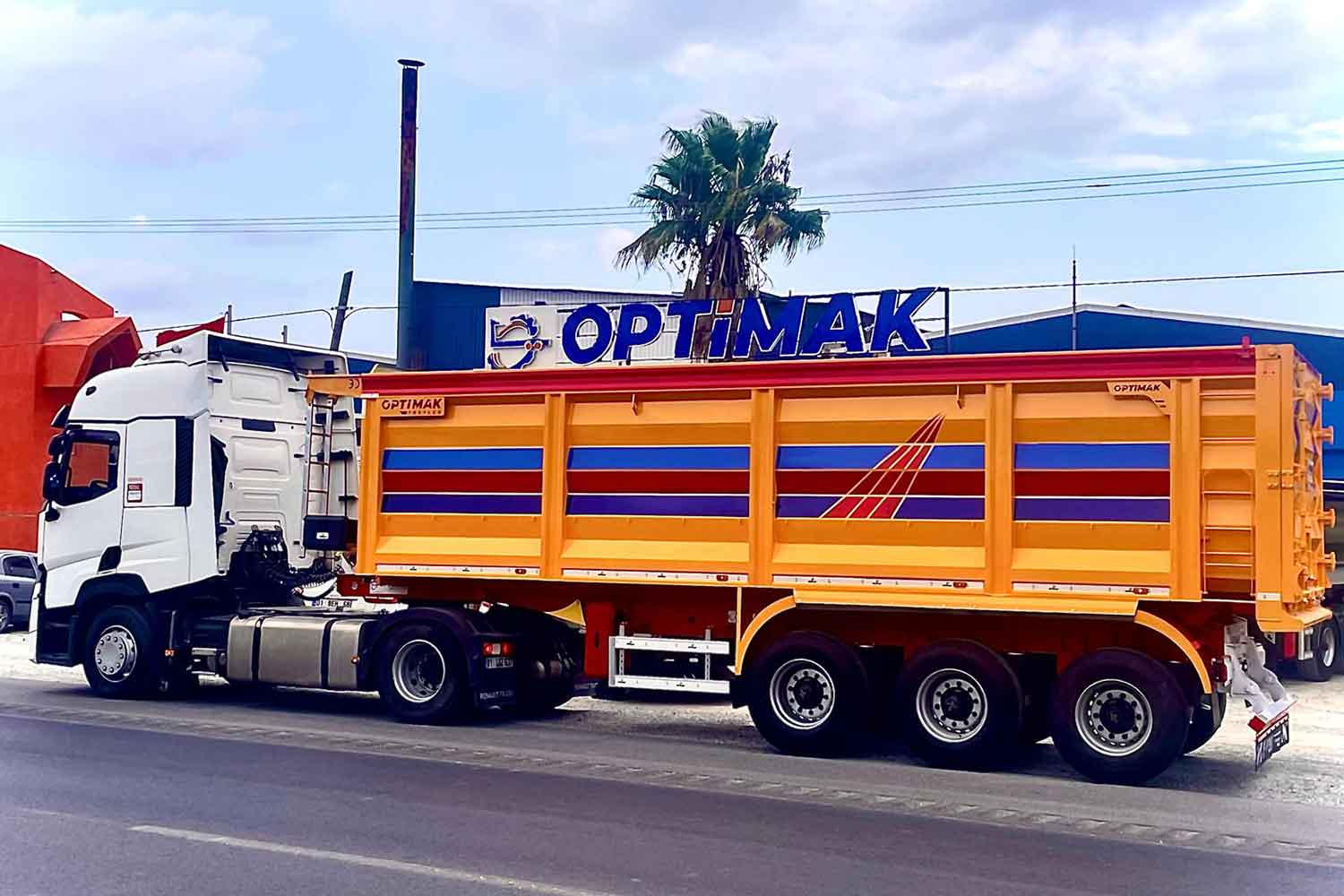

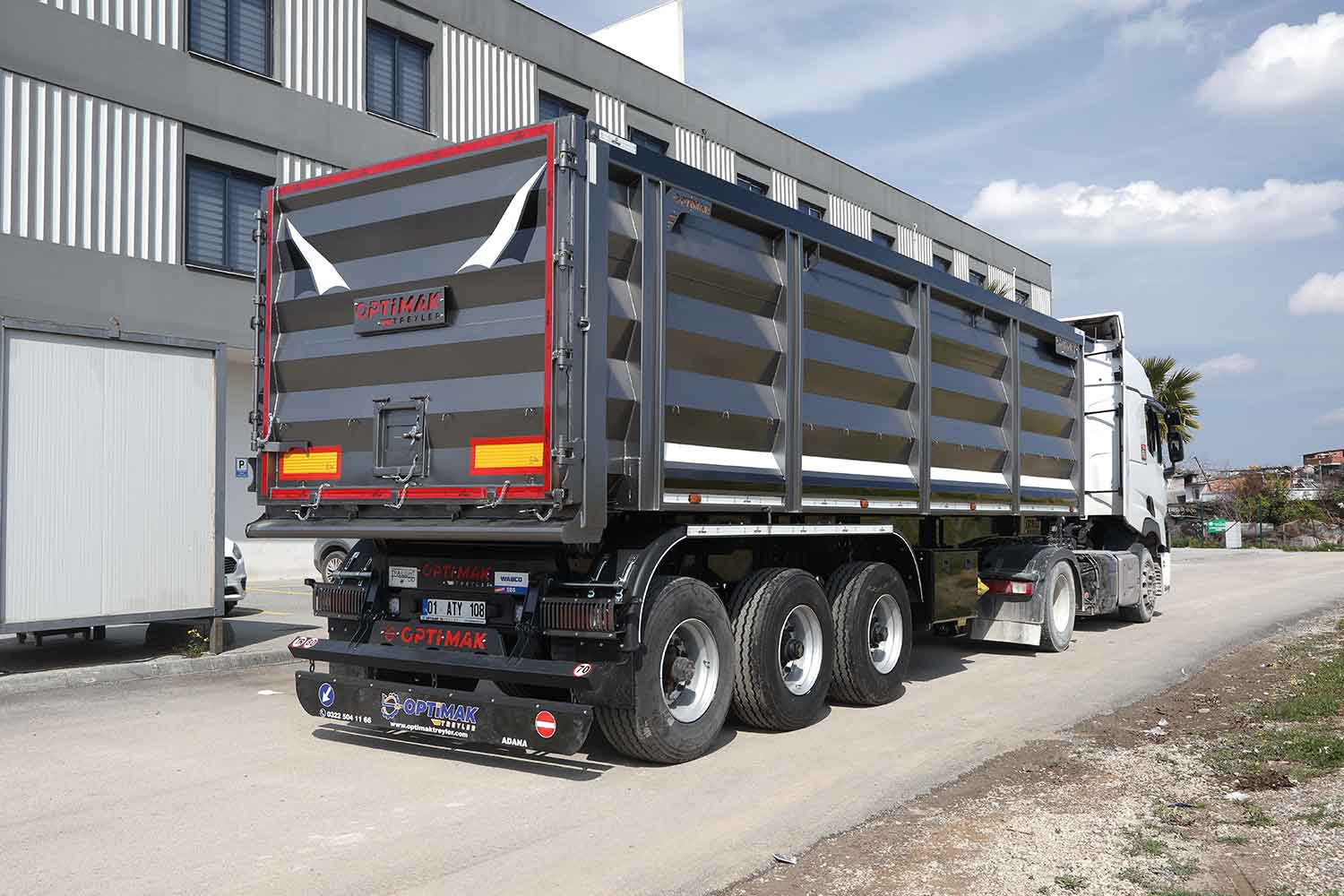

Accordion Type Tipper Trailer
The Accordion Type Tipper Trailer provides practical load protection and operational comfort for bulk cargo that must be protected during transport. Its flexible cover concept helps reduce load loss while supporting efficient loading and unloading processes.
Accordion Type Tipper Trailer Catalog Download
You can access the catalog file containing technical details, model options and equipment information for this product.
SCRAP & GRAIN CARRIER SEMI-TRAILER TECHNICAL SPECIFICATIONS
|
1.1 |
Base / Side Walls |
Hardox 450, Hardox 500 TUF, high abrasion-resistant steel, and S700 MC high-strength steel. Production options are available between 3/3 mm to 8/6 mm |
|
1.2 |
Front Panel / Rear Cover: |
Hardox 450, Hardox 500 TUF, high abrasion-resistant steel, and S700 MC high-strength steel |
|
1.3 |
Supports and Cross Members |
S700 MC - S355 JR High-strength steel. |
|
1.4 |
BodyLongitudinal Carriers |
S700 MC - S355 JR High-strength steel. |
|
2.1 |
Chassis Platform |
Manufactured as I-section from high-strength S700 MC steel. |
|
2.2 |
Chassis Cross Members and Supports |
S700 MC - S355 JR High-strength steel. |
|
2.3 |
Landing Gear |
Speed-adjustable, with a dynamic load capacity of 24 tons. |
|
2.4 |
King Pin |
2” bolted King Pin compliant with ECE R55 Regulation. |
|
2.5 |
Axle Specifications |
Standard production includes:
Axle Brand Options: 9 or 12 Ton Capacity Turkish Brands: PIRLANTA (Relax) - ÖZKOÇ - SERTEL European Brands: BPW - SAF HOLLAND - VALX |
|
2.6 |
Tire - Wheel |
385/65/R22.5 tire / 11.75 x 22.5 Steel wheel |
|
2.7 |
Brake System |
WABCO or KNORR 2S/2M electro-pneumatic EBS brake system compliant with ECE R13 Regulation |
|
2.8 |
Electrical System |
Electrical and lighting system compliant with ECE R48 Regulation |
|
2.9 |
Rear Underrun Protection |
Folding type bumper compliant with ECE R58 Regulation. |
|
2.10 |
Lateral Protection |
Foldable type compliant with ECE R73 Regulation. |
|
2.11 |
Mudguards |
Plastic mudguards - Anti-Spray mudflap |
|
3.1 |
Tipping Cylinder |
175 - 5- 5550 C TYPE HİDROMAS BRAND |
|
3.2 |
Yağ tankı |
HİDROMAS rectangular type oil tank with gauge. (Round type and other brand production options available) |
|
3.3 |
Hydraulic Oil |
ISO VG 32 – 46 - 68 |
|
3.4 |
Hydraulic Hoses |
R2 Steel high-pressure hoses |
|
3.5 |
PTO - EQUIPMENT RELATED TO PUMP AND TRUCK |
Not included in standard production, offered as optional
|
|
4.1 |
Standard Accessories |
Plastic or sheet metal toolbox (1), load gauge (1), wheel chock (1), spare tire carrier (1), fire extinguisher cabinet (without tube) (1), ladder (1) |
|
5.1 |
PAINT SPECIFICATIONS |
After surface cleaning with sandblasting, epoxy primer and acrylic topcoat are applied in the desired colors with appropriate film thickness. |
OPTIONAL
|
|
.png)
|
|

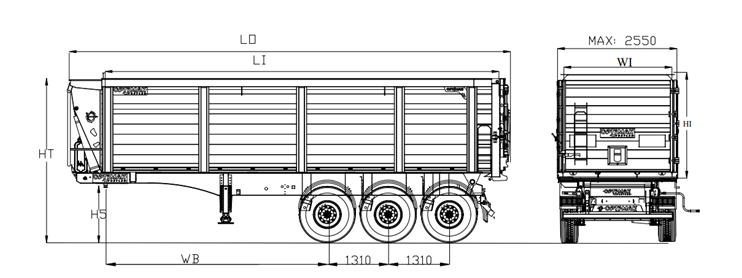

AKR-800 |
AKR-860 |
|
Inner Lenght (mm) - LI |
8.000 mm |
8.600 mm |
|
Inner Width (mm) - WI |
2.320 mm |
2.320 mm |
|
Inner Height (mm) - HI |
Min: 1.800 mm Max: 2.200 mm |
Min: 1.800 mm Max: 2.200 mm |
|
Volume (m3) |
33 – 37 – 39 m3 |
36 – 39 – 42 m3 |
|
Wheel Base (mm) - WB |
4.200 mm |
4800 mm |
|
Fifth Wheel Height (mm) – H5 |
1.220 mm |
1.220 mm |
|
Total Height (mm) - HT |
Min: 3.250 mm Max: 3.700 m |
Min: 3.250 mm Max: 3.700 m |
|
Total Lenght (mm) - LO |
9.000 mm |
9.600 mm |
|
Maximum Tilt Angle |
44o |
44o |
|
Dry Weight (kg) |
Min: 6.500 kg Max: 9.500 kg |
Min: 6.500 kg Max: 9.500 kg |
|
Permissible Total Weight (kg) |
40.000 kg |
40.000 kg |
|
Rated Load Capacity (kg) |
Min: 30.500 kg Max: 33.500 kg |
Min: 30.500 kg Max: 33.500 kg |
