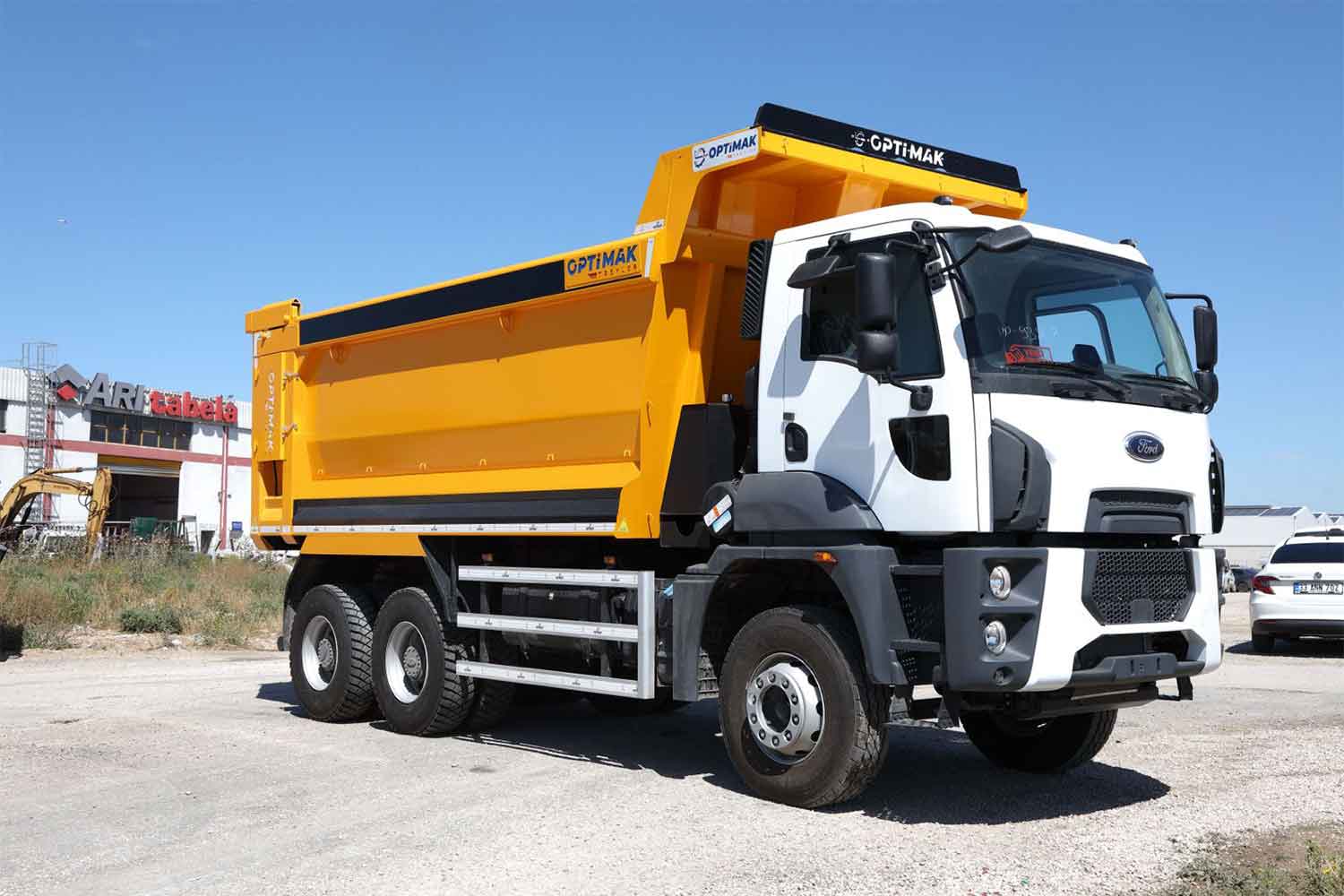

Truck-Mounted Tipper
The Truck-Mounted Tipper is developed for urban construction logistics, site work and short-distance heavy material transportation. Its strong body, hydraulic lifting system and compact operating structure help improve productivity in demanding daily operations.
Truck-Mounted Tipper Catalog Download
You can access the catalog file containing technical details, model options and equipment information for this product.
TIPPER TRUCK BODY TECHNICAL SPECIFICATIONS
|
1.1 |
Base / Side Walls |
HARDOX 450 and HARDOX 500 TUF high-wear-resistant steel. Production options range from 6/5 mm to 12/10 mm. |
|
1.2 |
Front Panel / Rear Cover: |
HARDOX 450 and HARDOX 500 TUF high-wear-resistant steel. |
|
1.3 |
Supports and Cross Members |
S355 JR High-strength steel. |
|
1.4 |
BodyLongitudinal Carriers |
S355 JR High-strength steel. |
|
1.5 |
Chassis Platform |
S355 JR High-strength steel. |
|
1.6 |
Cross Members |
S355 JR High-strength steel. |
|
1.7 |
Rear Cover Operating System |
Hydraulic arm or mechanical hinged. |
|
1.8 |
Electrical System |
Electrical and lighting system compliant with ECE R48 Regulation |
|
1.9 |
Lateral Protection |
Foldable type compliant with ECE R73 Regulation. |
|
1.10 |
Mudguards |
Plastic or steel mudguards - Anti-Spray mudflap |
|
1.11 |
Tipping Cylinder |
C TYPE HİDROMAS BRAND |
|
1.12 |
Oil Tank |
Rectangular type custom manufacturing |
|
1.13 |
Hydraulic Oil |
ISO VG 32 – 46 - 68 |
|
1.14 |
Hydraulic Hoses |
R2 Steel high-pressure hoses |
|
1.15 |
Hydraulic PUMP |
High pressure hydraulic pump
|
|
1.16 |
PTO - EQUIPMENT RELATED TO TRUCK |
Not included in standard production, offered as optional
|
|
1.17 |
Standard Accessories |
Plastic or sheet metal toolbox (1), Folding ladder (1) |
|
1.18 |
PAINT SPECIFICATIONS |
After surface cleaning with sandblasting, epoxy primer and acrylic topcoat are applied in the desired colors with appropriate film thickness. |
|
|
HPR-840 8X4 TRUCKS |
HPR-640 6X4 TRUCKS |
|

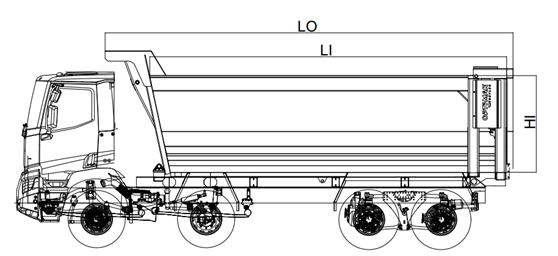

Inner Lenght (mm) - LI |
6300 – 7000 mm |
5300 – 6000 mm |
|
Inner Width (mm) - WI |
2.300 mm |
2.300 mm |
|
Inner Height (mm) - HI |
Min: 1.300 mm Max: 1.800 mm |
Min: 1.300 mm Max: 1.800 mm |
|
Volume (m3) |
20 – 22 – 24 -26 m3 |
16 – 18 – 20 -22 m3 |
|
Total Lenght (mm) - LO |
7250 - 8000 mm |
6250 - 7000 mm |
|
Rated Load Capacity (kg) |
Varies according to the truck feature |
Varies according to the truck feature |
