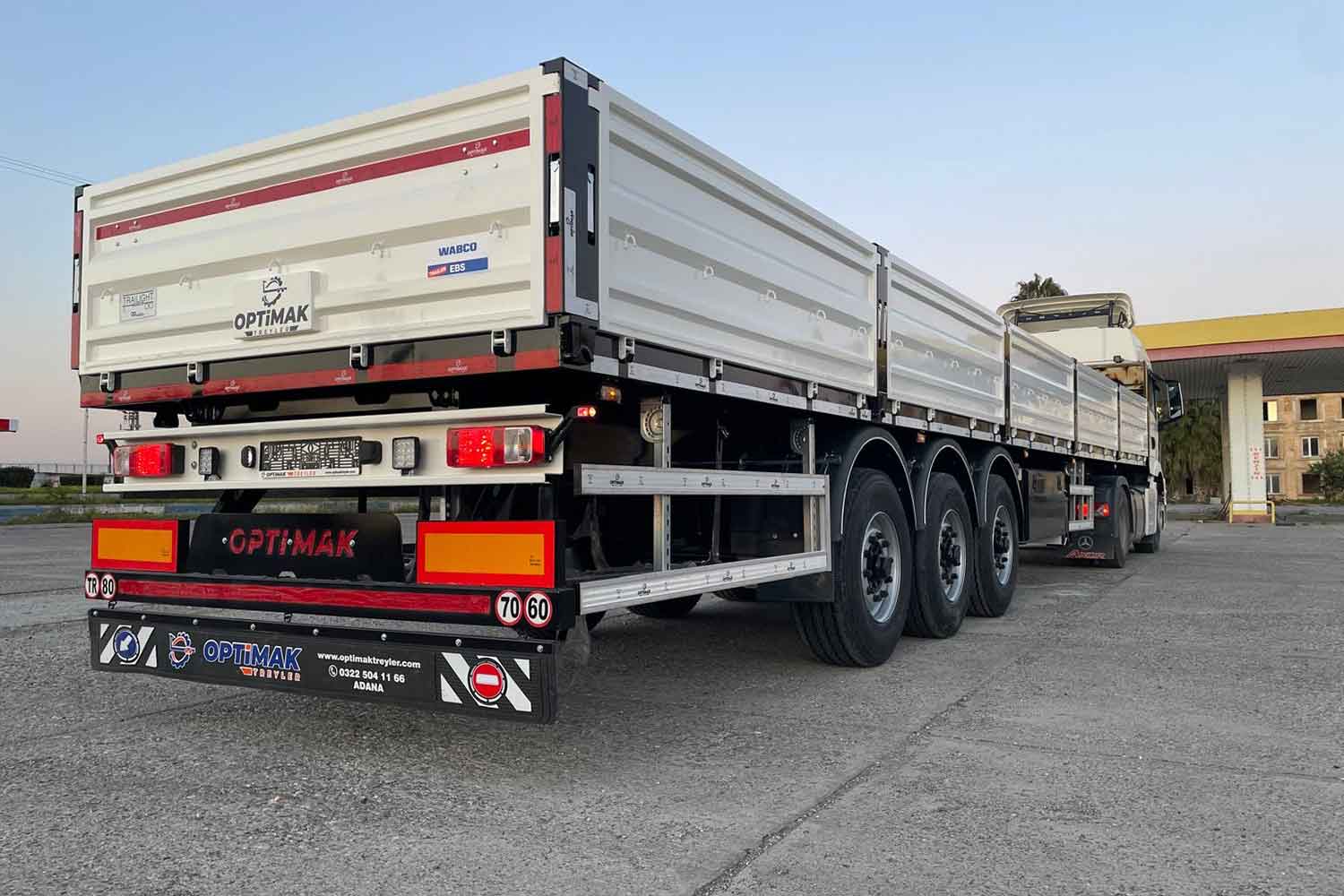

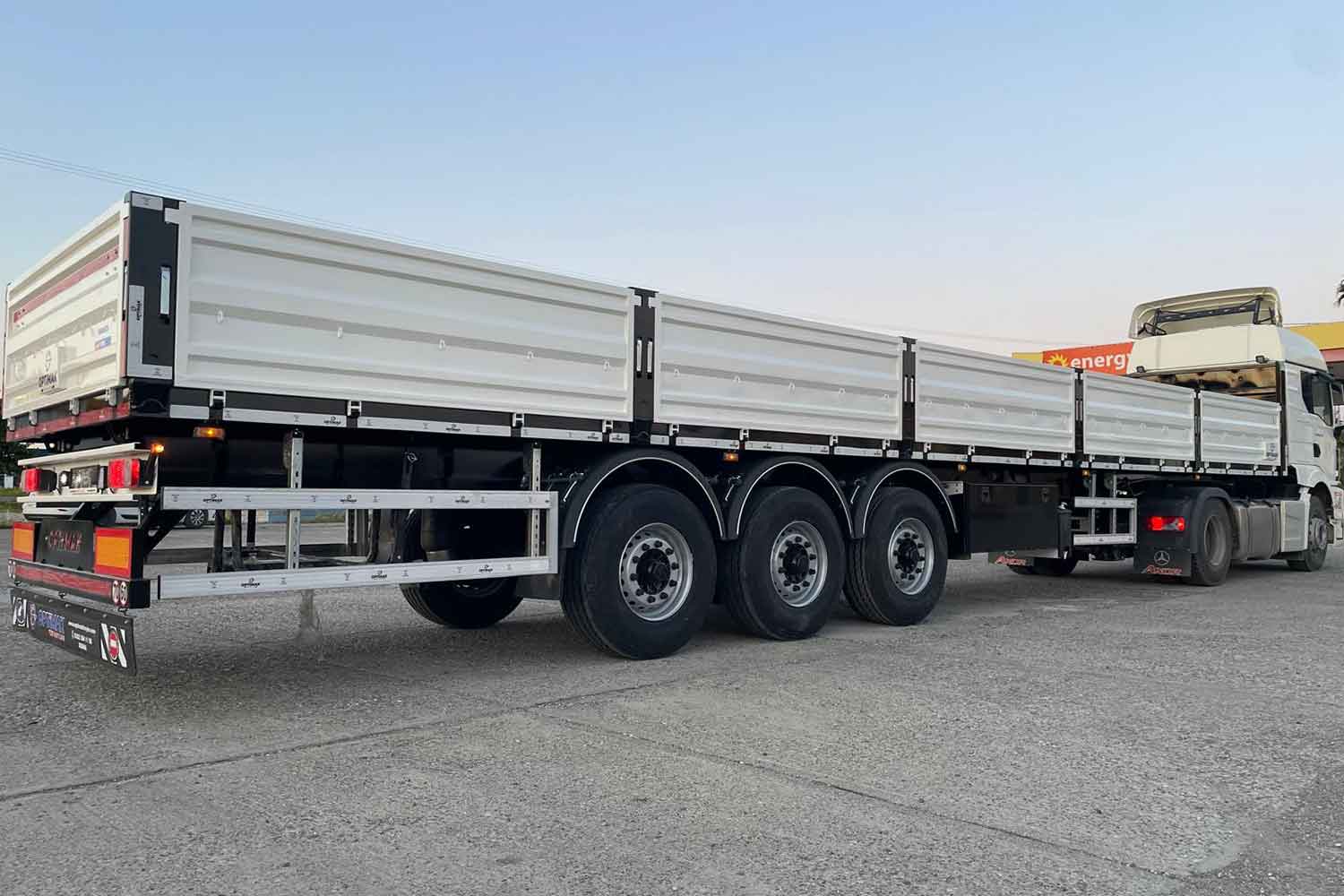

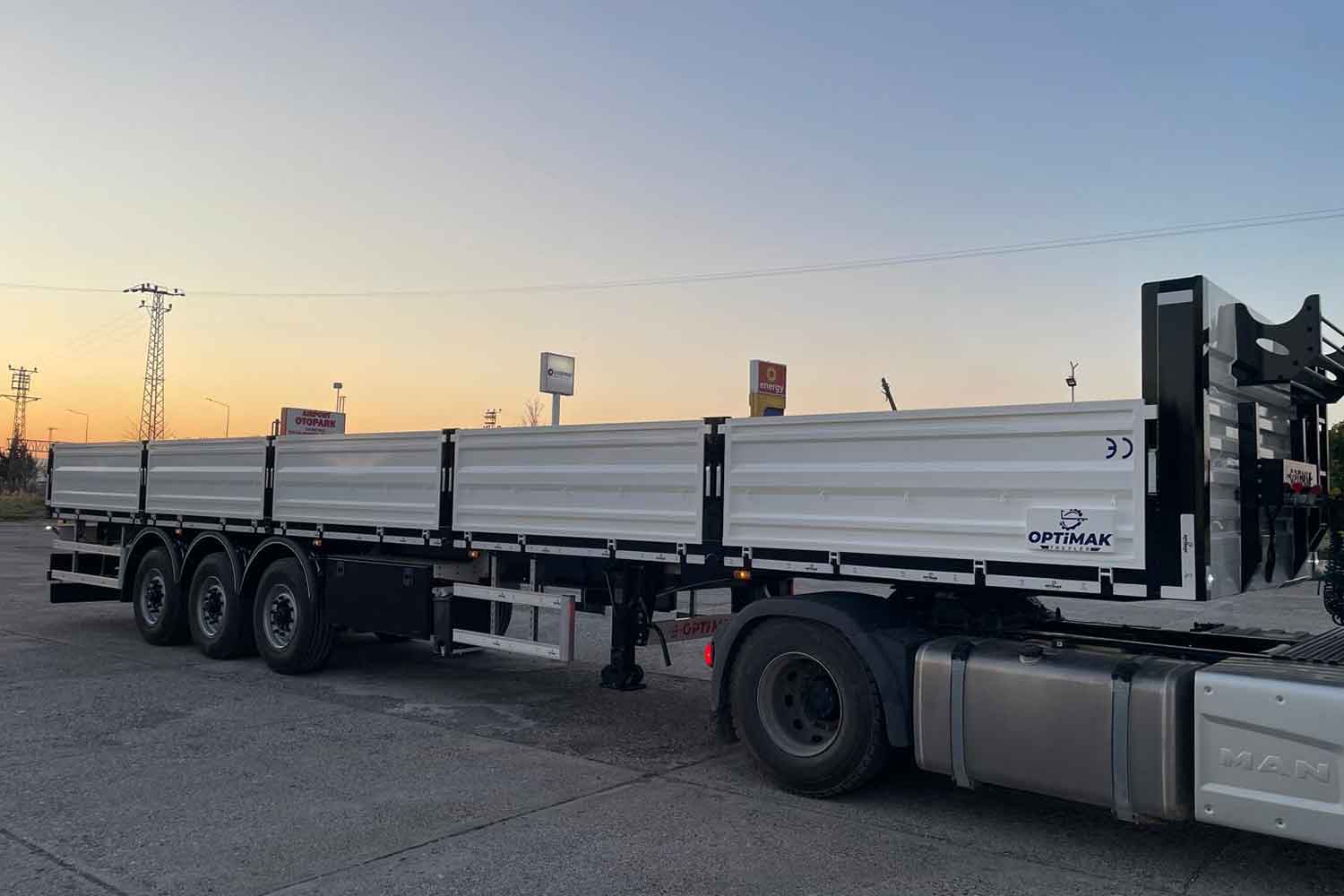

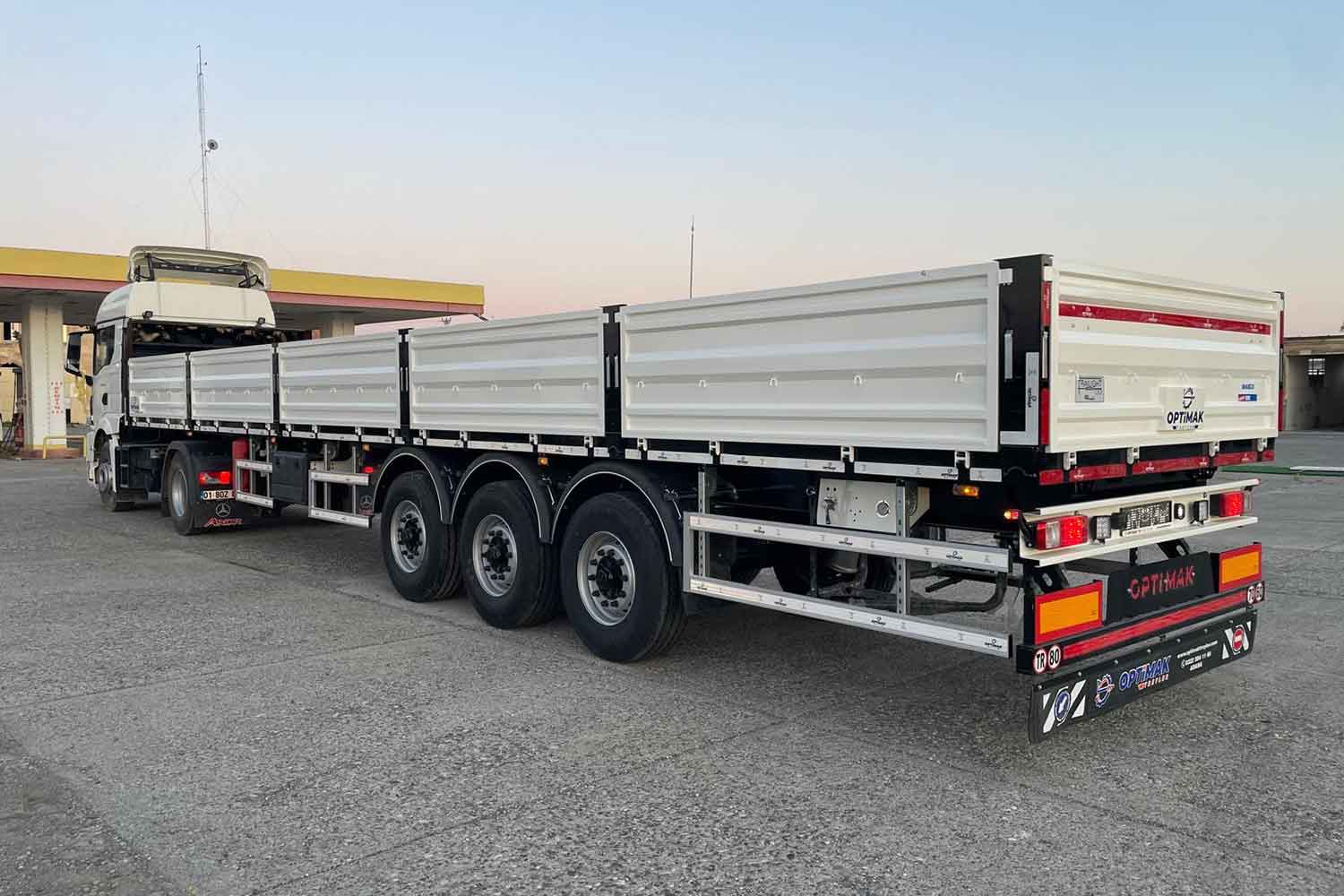

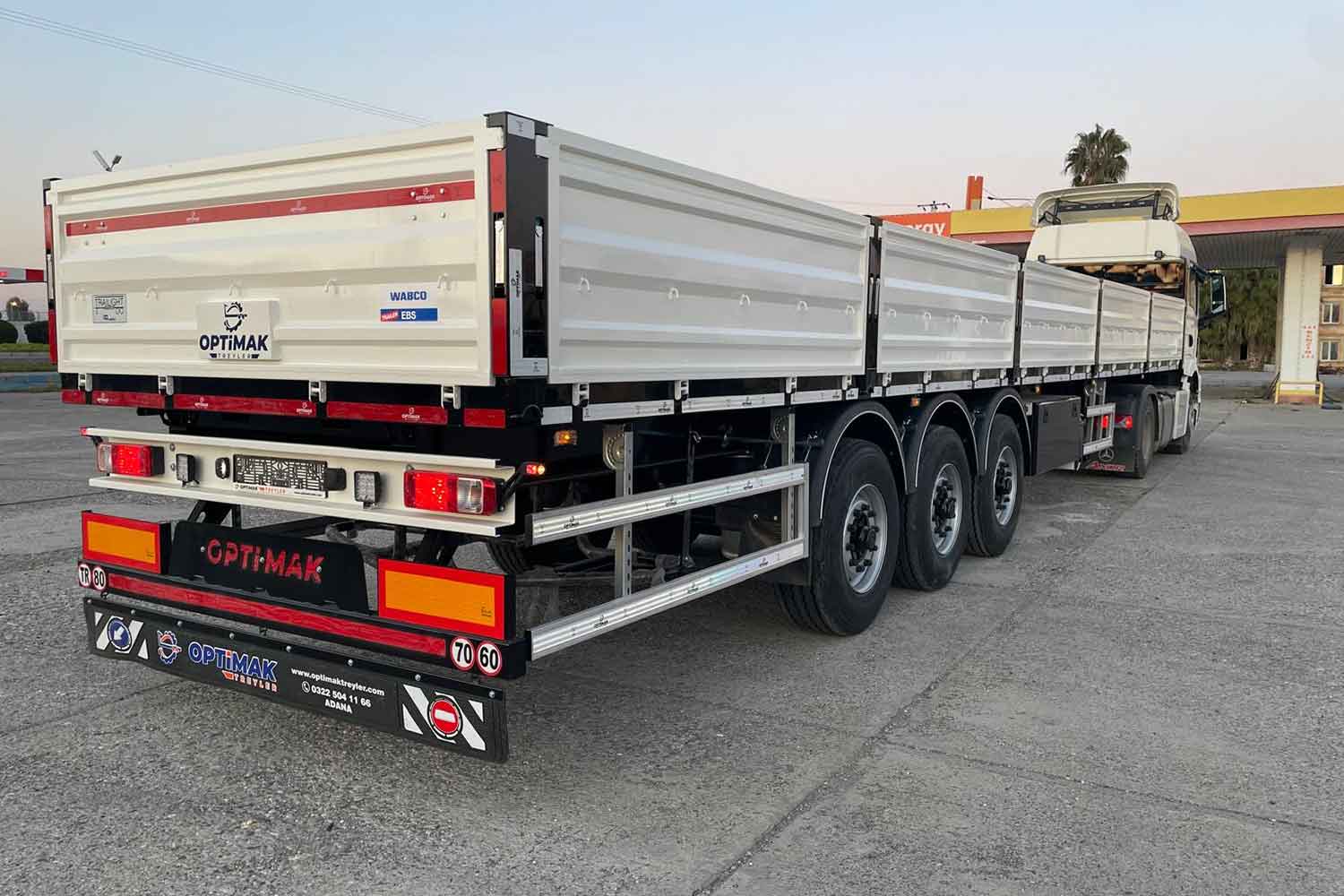

Flatbed Trailer - Platform
The Flatbed Trailer - Platform is designed for long, palletized, packaged or project cargo that requires safe loading, secure fastening and practical side access. Its platform structure provides flexibility across logistics, industry and construction applications.
Flatbed Trailer - Platform Catalog Download
You can access the catalog file containing technical details, model options and equipment information for this product.
PLATFORM- DRY CARGO TRAILAR TECHNICAL SPECIFICATIONS:
|
1.1 |
Chassis Platform |
Manufactured as I-section from high-strength S700 MC steel. |
|
1.2 |
Chassis Cross Members and Supports |
S700 MC - S355 JR High-strength steel. |
|
1.3 |
Landing Gear |
Speed-adjustable, with a dynamic load capacity of 24 tons. |
|
1.4 |
King Pin |
2” bolted King Pin compliant with ECE R55 Regulation. |
|
1.5 |
Axle Specifications |
Standard production includes:
Axle Brand Options: 9 or 12 Ton Capacity Turkish Brands: PIRLANTA (Relax) - ÖZKOÇ - SERTEL European Brands: BPW - SAF HOLLAND - VALX |
|
1.6 |
Tire - Wheel |
385/65/R22.5 tire / 11.75 x 22.5 Steel wheel |
|
1.7 |
Brake System |
WABCO or KNORR 2S/2M electro-pneumatic EBS brake system compliant with ECE R13 Regulation |
|
1.8 |
Electrical System |
Electrical and lighting system compliant with ECE R48 Regulation |
|
1.9 |
Rear Underrun Protection |
“C” type bumper compliant with ECE R58 Regulation. |
|
1.10 |
Lateral Protection |
Foldable type compliant with ECE R73 Regulation. |
|
1.11 |
Mudguards |
Plastic mudguards - Anti-Spray mudflap |
|
2.1 |
Body |
The base is coated with resin film 30 mm plywood, the covers and front panel are made of high-strength cold-rolled S700 CR, and the main carriers and cover posts are made of high-strength S700 MC steel sheet. |
|
3.1 |
Standard Accessories |
Plastic or sheet metal toolbox (2), load gauge (1), wheel chock (1), spare tire carrier (1), fire extinguisher cabinet (without tube) (1), ladder (1) |
|
4.1 |
PAINT SPECIFICATIONS |
After surface cleaning with sandblasting, epoxy primer and acrylic topcoat are applied in the desired colors with appropriate film thickness. |
OPTIONAL
|
|
|
|

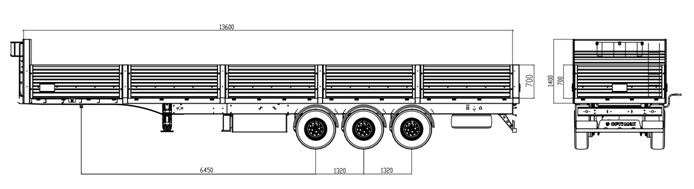

PLT-1360 |
|
Wheel Base (mm) - WB |
6.450 mm |
|
Fifth Wheel Height (mm) – H5 |
1.180-1.250 mm |
|
Total Lenght (mm) - LO |
13.600 mm |
|
Dry Weight (kg) |
Min: 4.500 kg Max: 7.500 kg |
|
Permissible Total Weight (kg) |
40.000 kg |
|
Rated Load Capacity (kg) |
Min: 32.500 kg Max: 35.500 kg |
