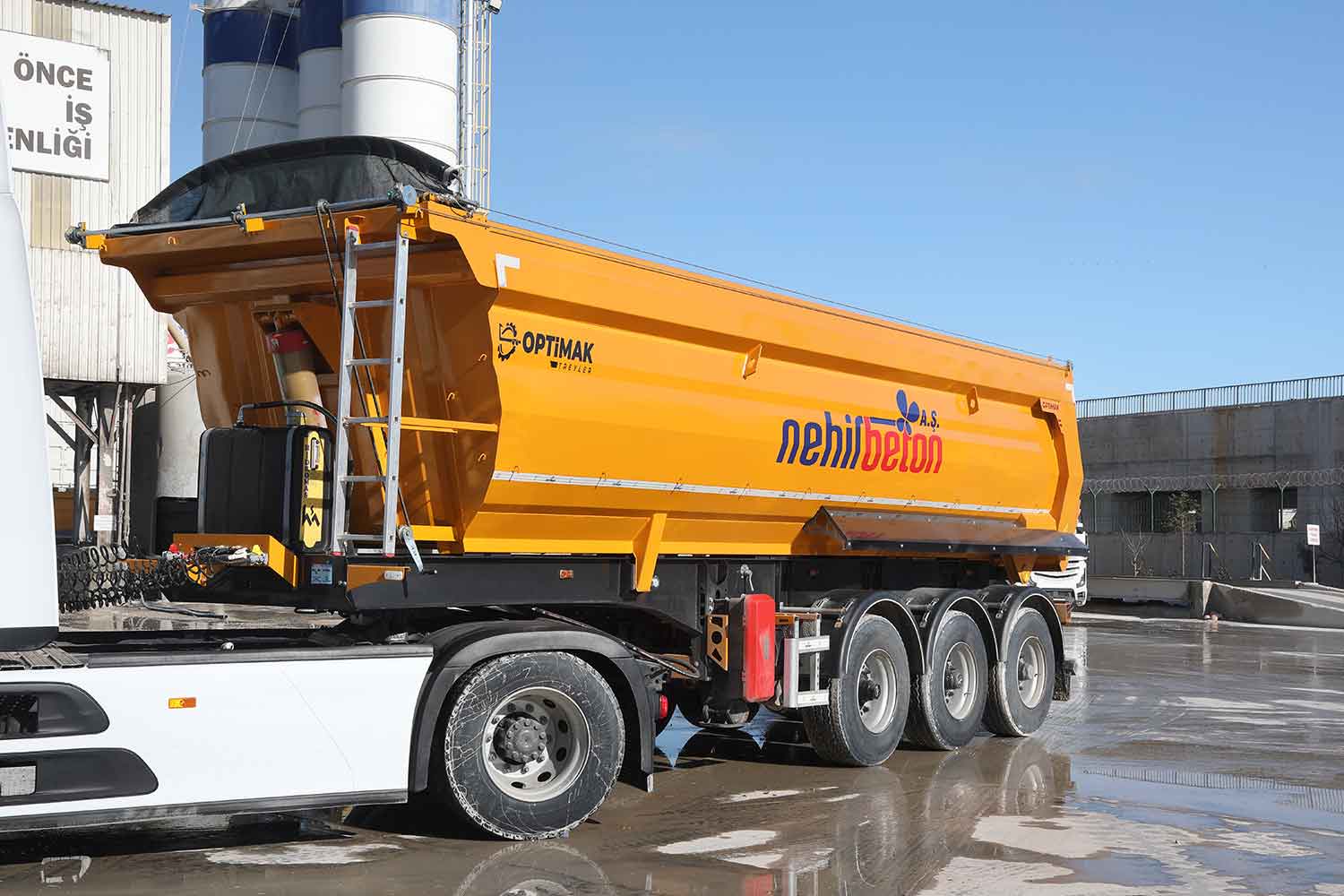

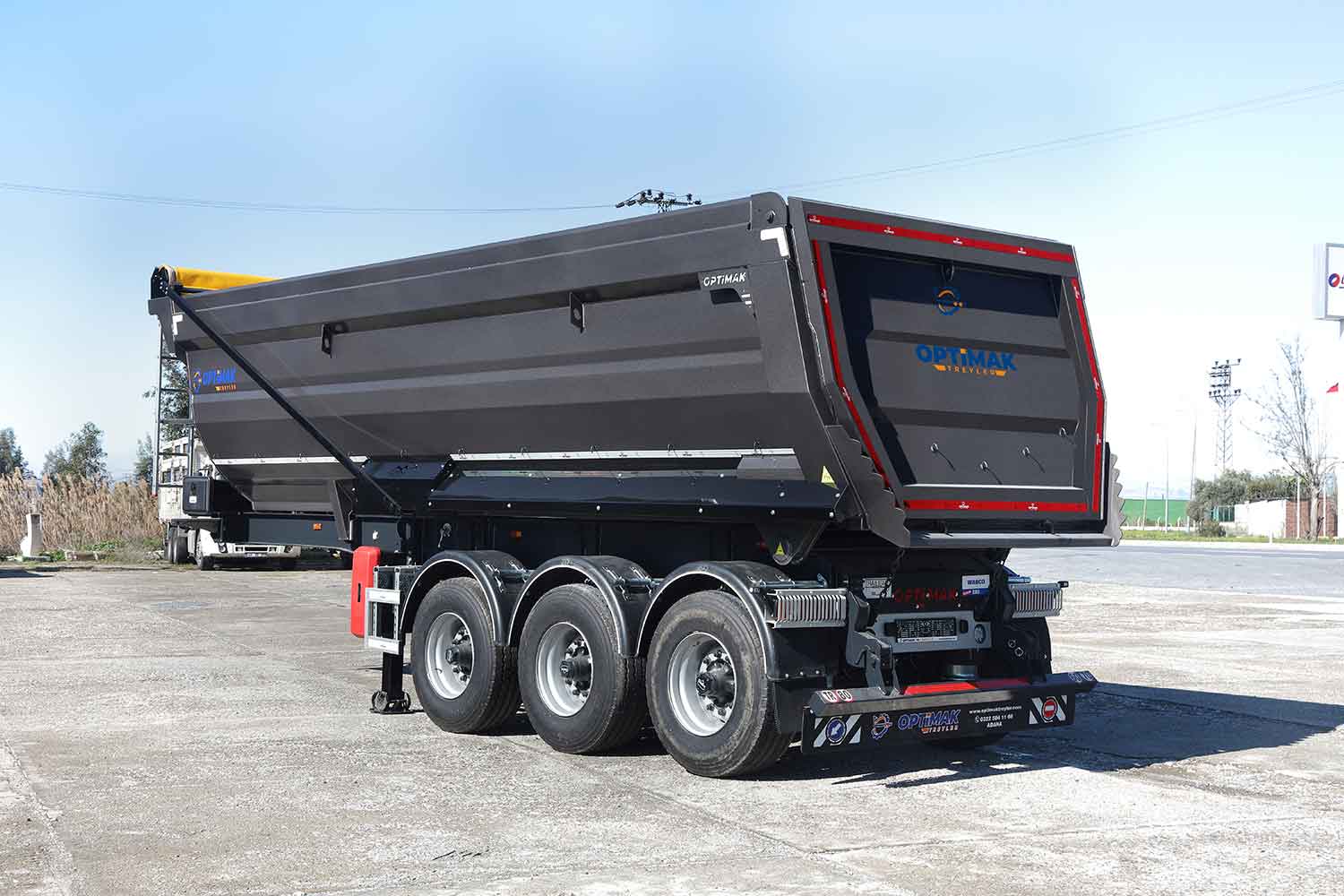

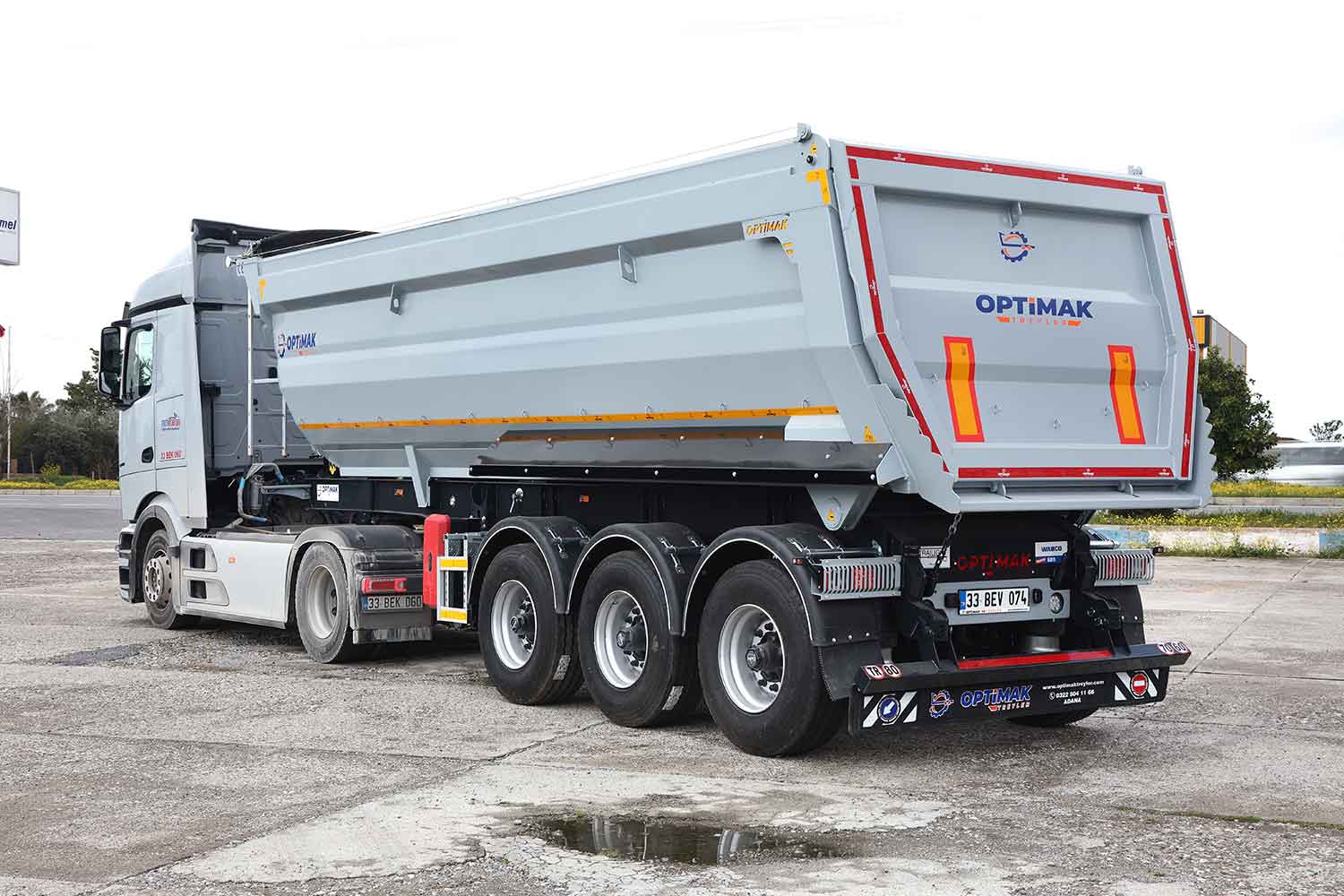

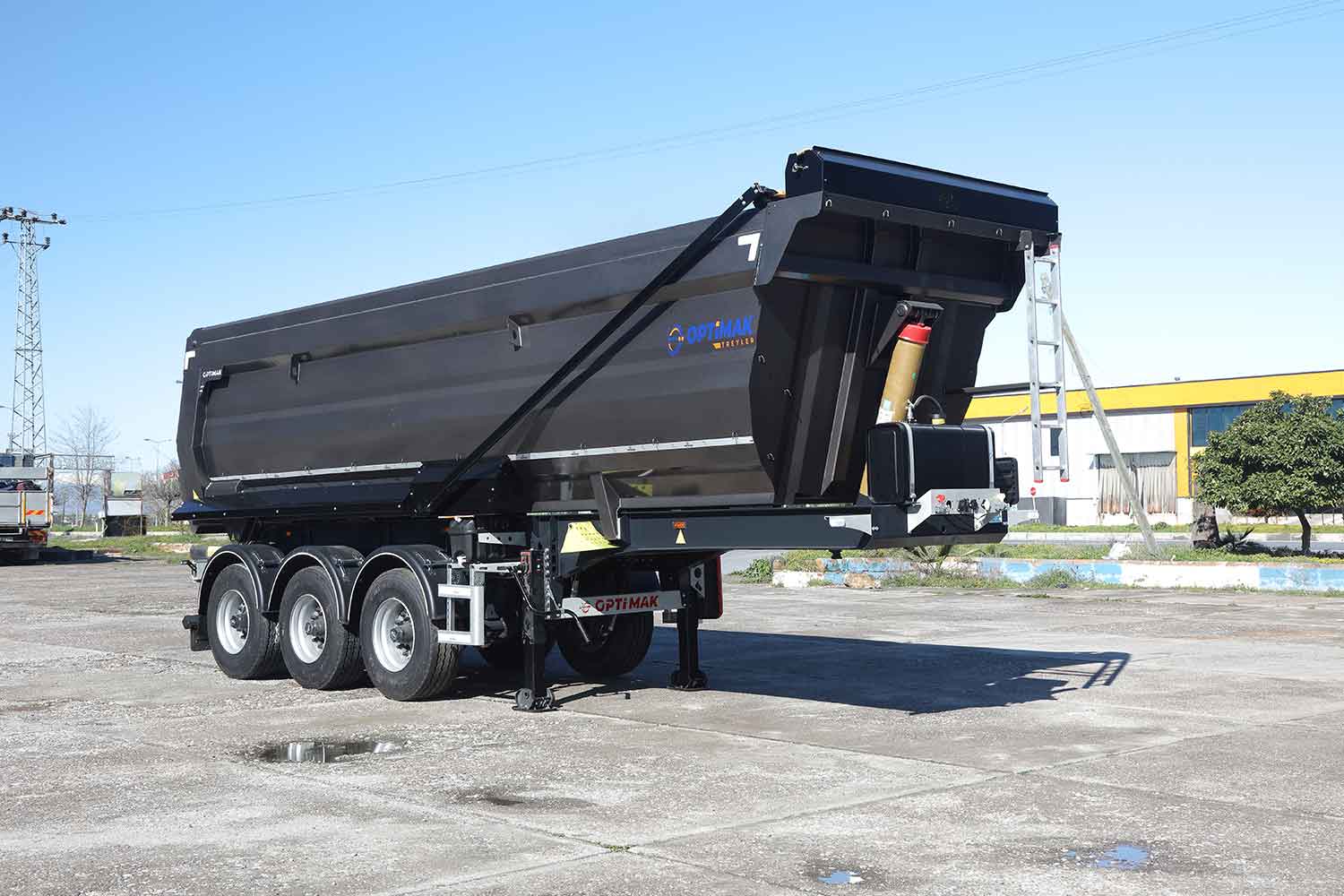

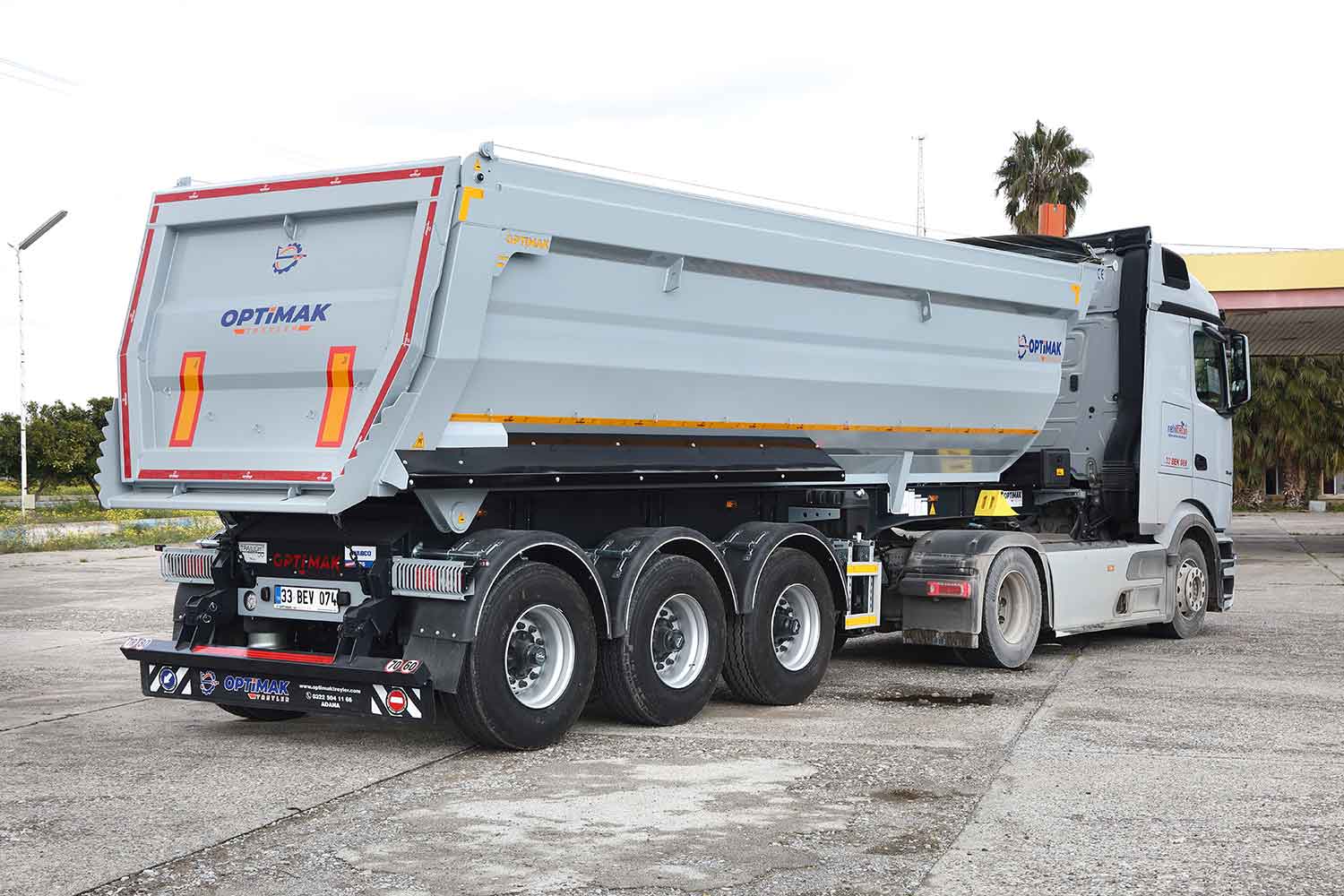

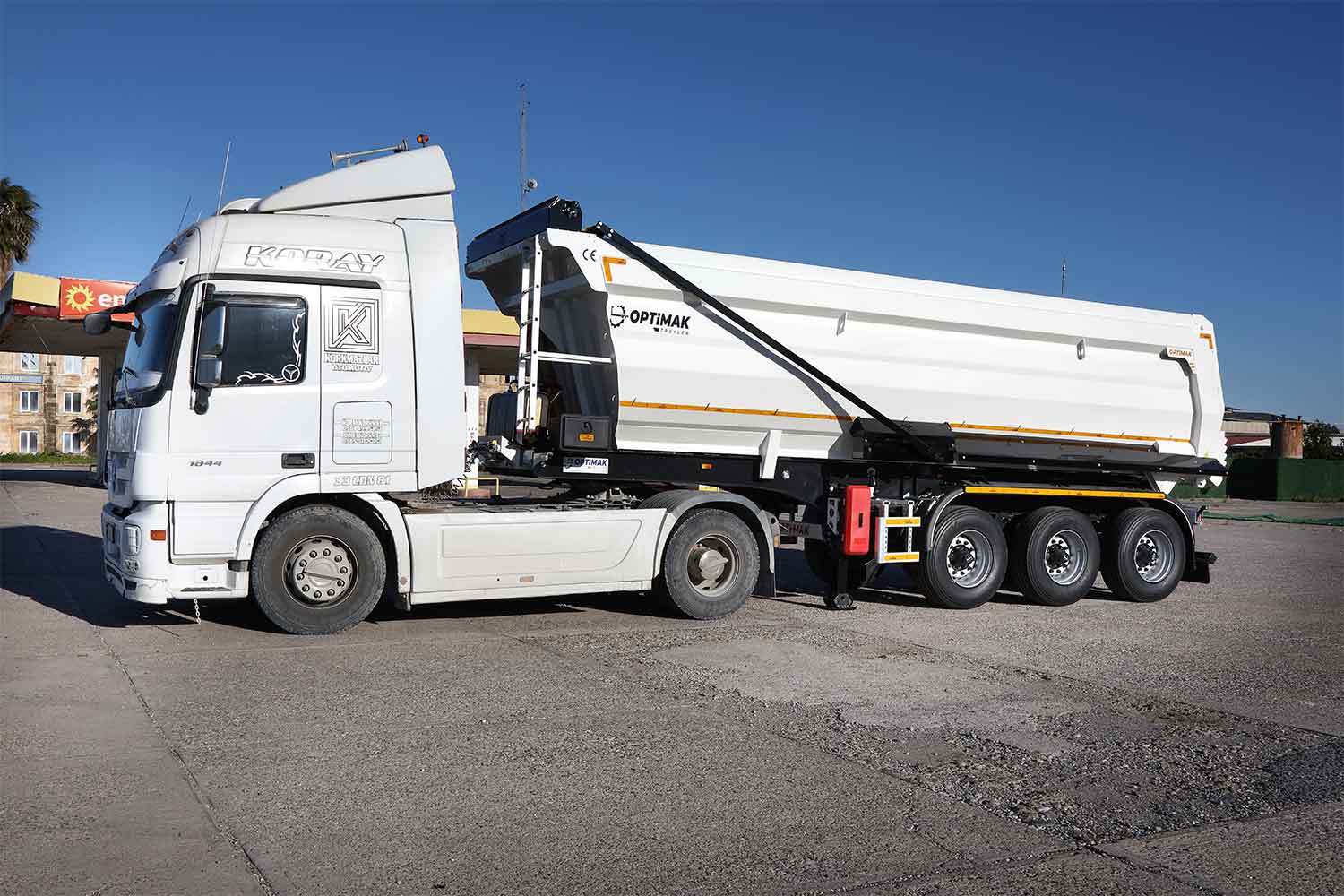

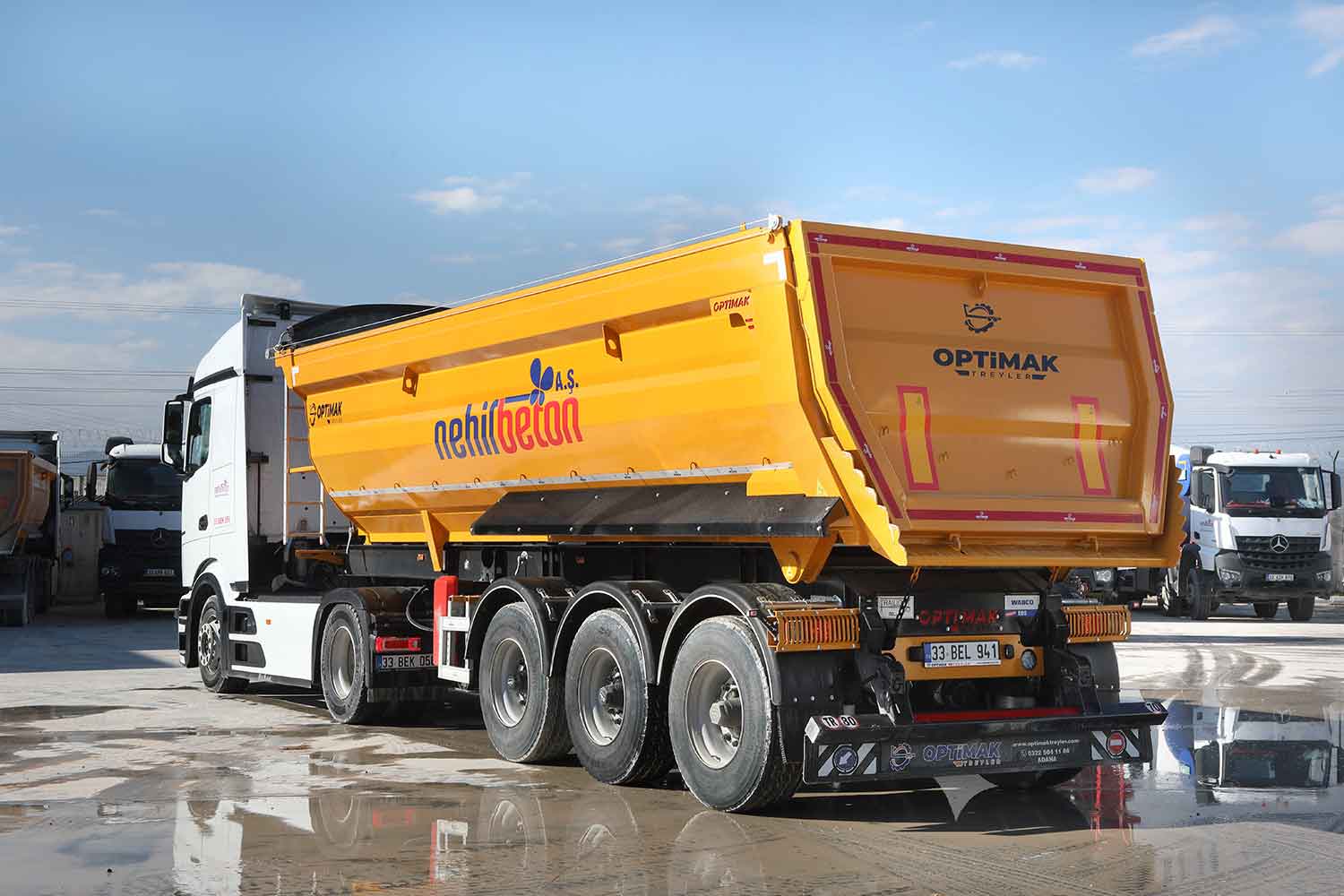

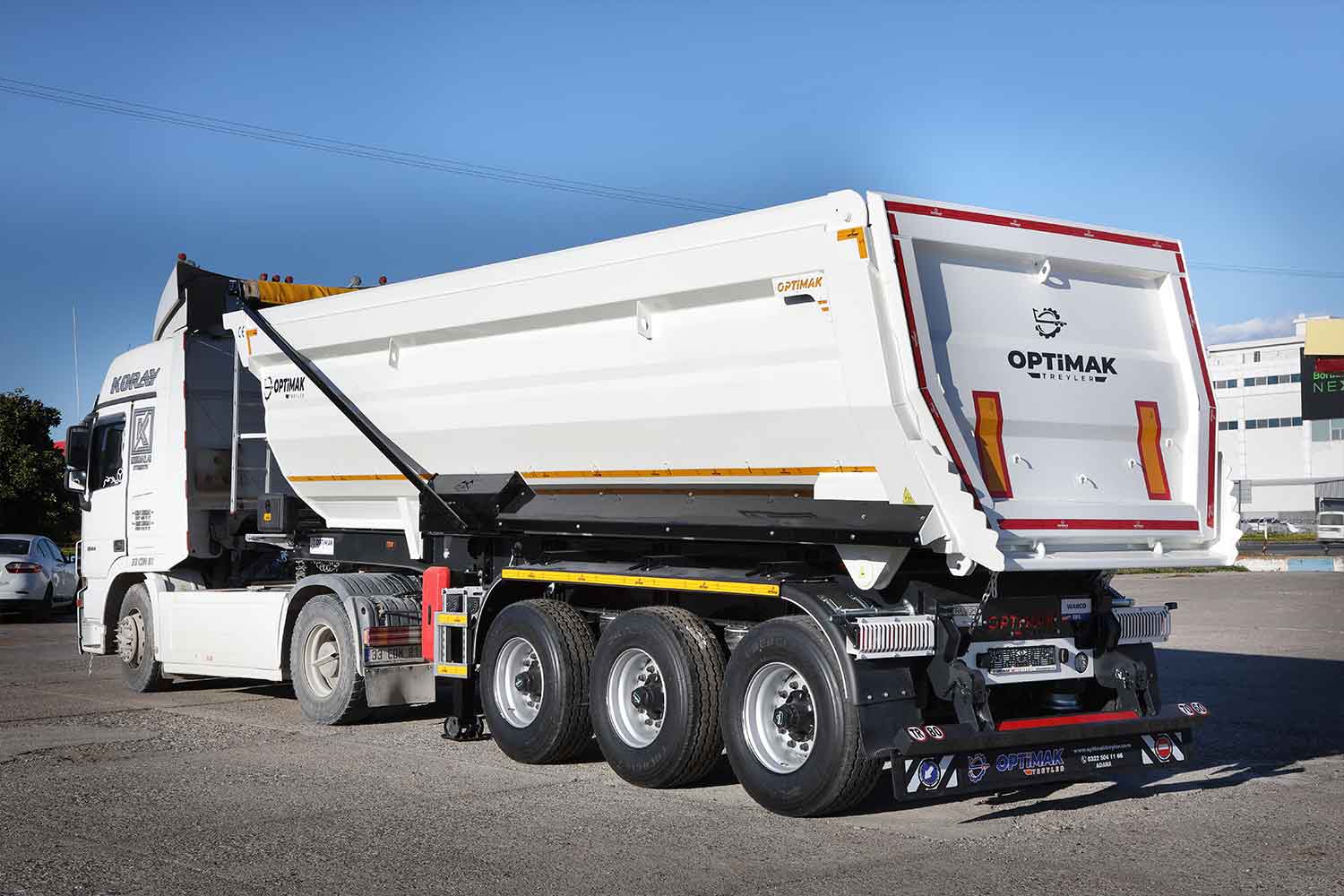

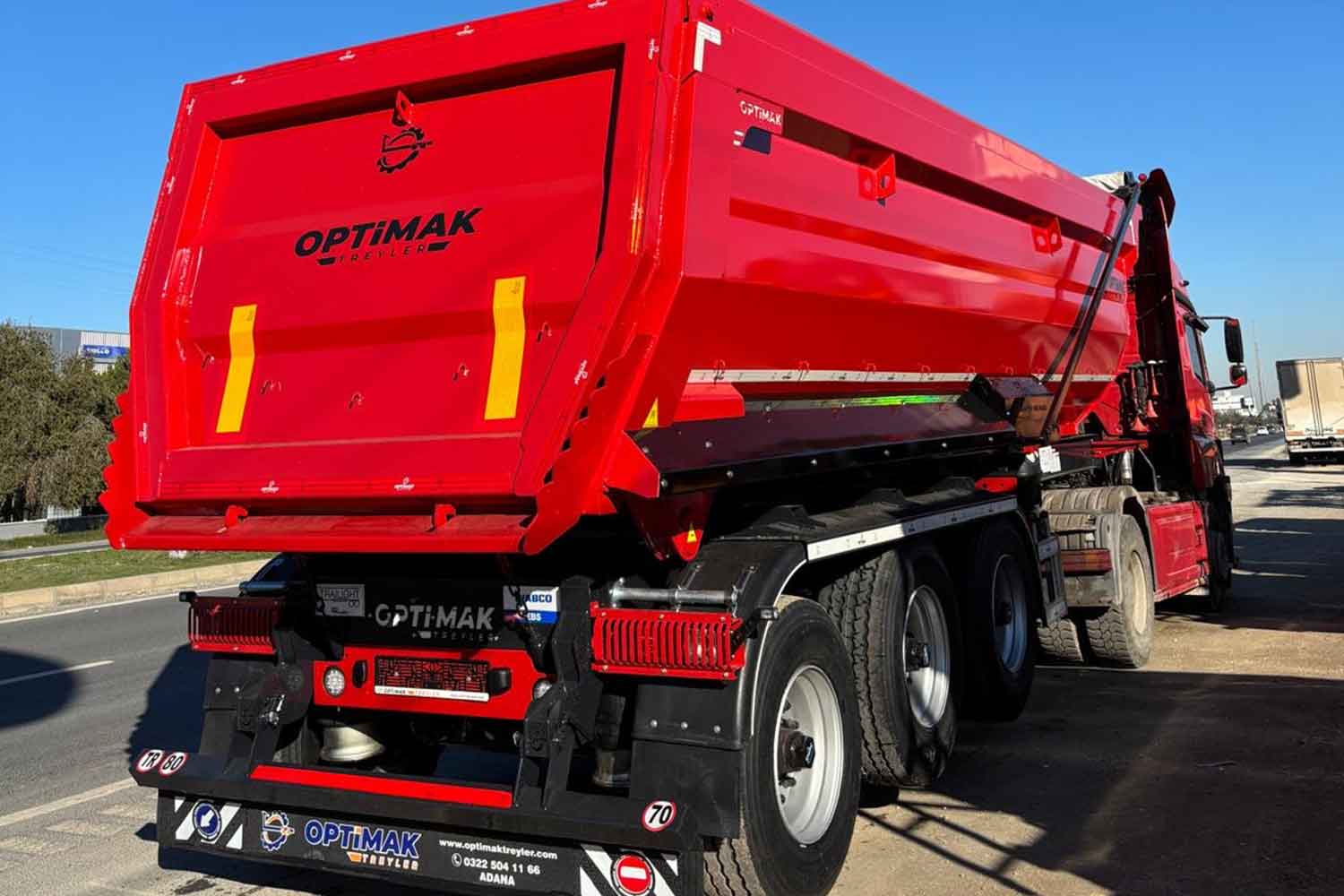

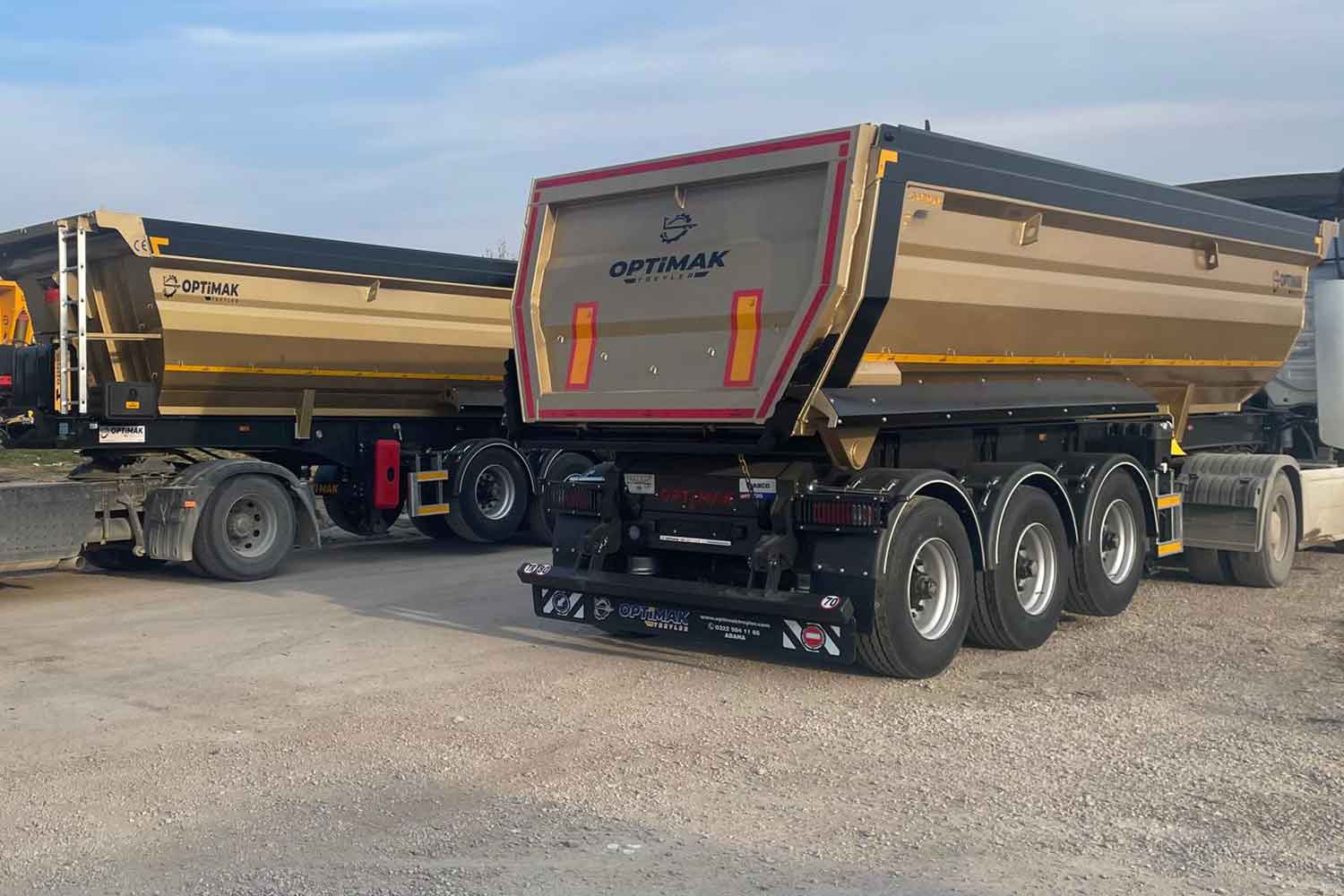

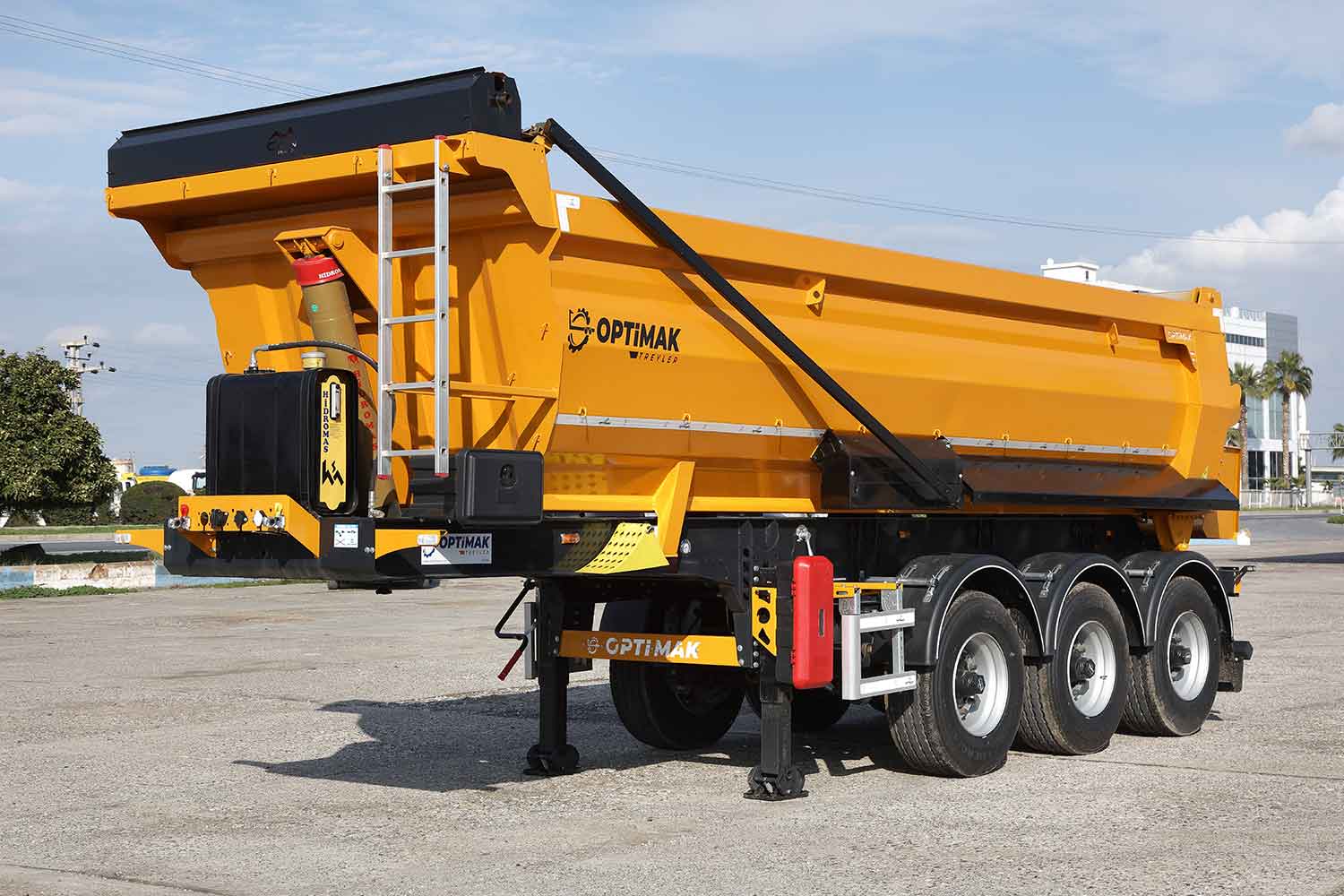

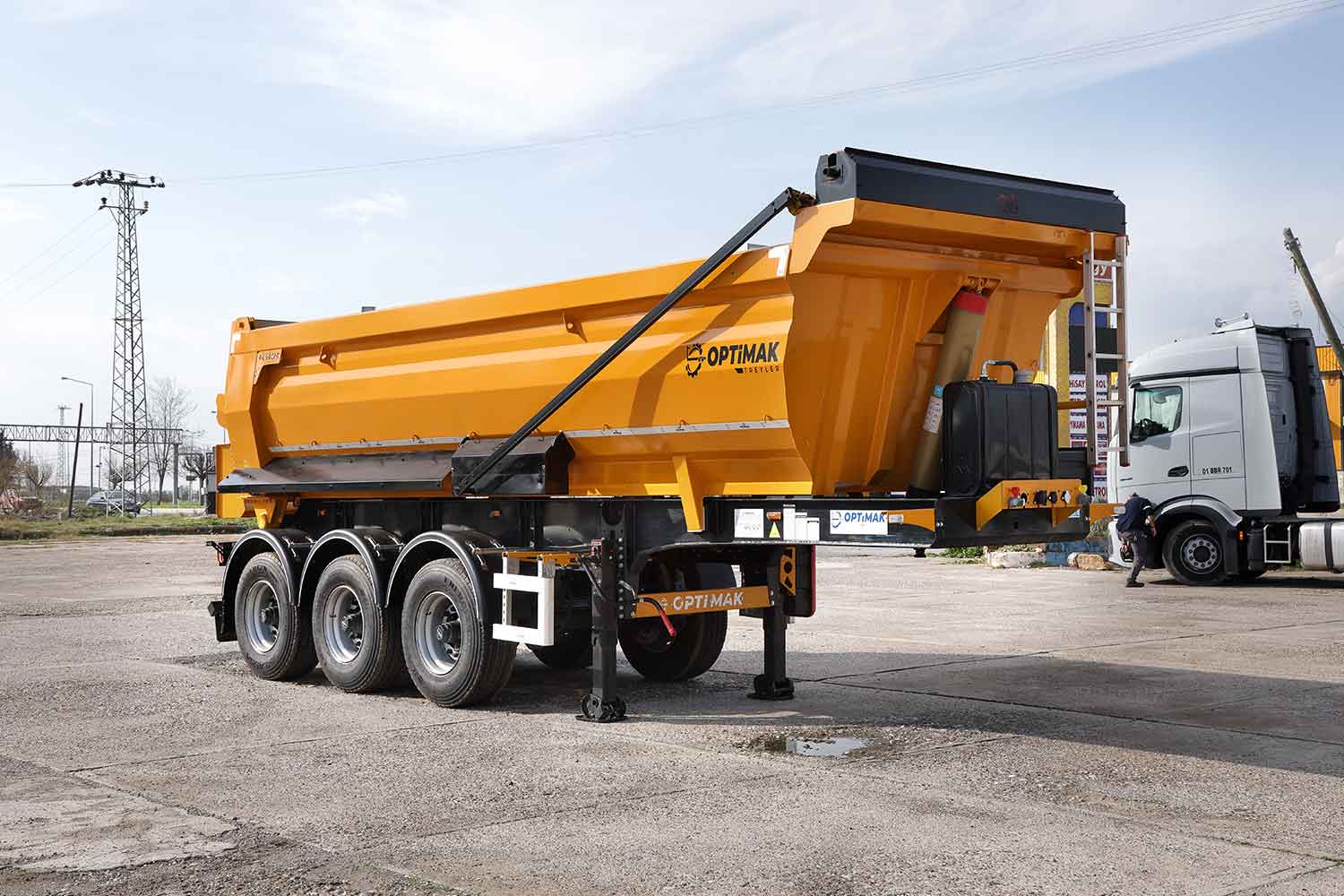

Pool Tipper Trailer
The Pool Tipper Trailer is engineered for demanding bulk material transportation in construction, mining and heavy-duty site operations. Its reinforced body structure and wear-resistant steel options provide high durability under abrasive loads such as aggregate, stone, rubble and ore.
Pool Tipper Trailer Catalog Download
You can access the catalog file containing technical details, model options and equipment information for this product.
Technical Highlights
|
1.1 |
Base / Side Walls |
HARDOX 450 and HARDOX 500 TUF high-wear-resistant steel. Production options range from 4/3 mm to 8/6 mm. |
|
1.2 |
Front Panel / Rear Cover: |
HARDOX 450 and HARDOX 500 TUF high-wear-resistant steel. |
|
1.3 |
Supports and Cross Members |
S700 MC - S355 JR High-strength steel. |
|
1.4 |
BodyLongitudinal Carriers |
S700 MC - S355 JR High-strength steel. |
|
2.1 |
Chassis Platform |
Manufactured as I-section from high-strength S700 MC steel. |
|
2.2 |
Chassis Cross Members and Supports |
S700 MC - S355 JR High-strength steel. |
|
2.3 |
Landing Gear |
Speed-adjustable, with a dynamic load capacity of 24 tons. |
|
2.4 |
King Pin |
2” bolted King Pin compliant with ECE R55 Regulation. |
|
2.5 |
Axle Specifications |
Standard production includes:
Axle Brand Options: 9 or 12 Ton Capacity Turkish Brands: PIRLANTA (Relax) - ÖZKOÇ - SERTEL European Brands: BPW - SAF HOLLAND - VALX |
|
2.6 |
Tire - Wheel |
385/65/R22.5 tire / 11.75 x 22.5 Steel wheel |
|
2.7 |
Brake System |
WABCO or KNORR 2S/2M electro-pneumatic EBS brake system compliant with ECE R13 Regulation |
|
2.8 |
Electrical System |
Electrical and lighting system compliant with ECE R48 Regulation |
|
2.9 |
Rear Underrun Protection |
Folding type bumper compliant with ECE R58 Regulation. |
|
2.10 |
Lateral Protection |
Foldable type compliant with ECE R73 Regulation. |
|
2.11 |
Mudguards |
Plastic mudguards - Anti-Spray mudflap |
|
3.1 |
Tipping Cylinder |
175 - 5- 5550 C TYPE HİDROMAS BRAND |
|
3.2 |
Oil Tank |
HİDROMAS rectangular type oil tank with gauge. (Round type and other brand production options available) |
|
3.3 |
Hydraulic Oil |
ISO VG 32 – 46 - 68 |
|
3.4 |
Hydraulic Hoses |
R2 Steel high-pressure hoses |
|
3.5 |
PTO - EQUIPMENT RELATED TO PUMP AND TRUCK |
Not included in standard production, offered as optional
|
|
4.1 |
Standard Accessories |
Plastic or sheet metal toolbox (1), load gauge (1), wheel chock (1), spare tire carrier (1), fire extinguisher cabinet (without tube) (1), ladder (1) |
|
5.1 |
PAINT SPECIFICATIONS |
After surface cleaning with sandblasting, epoxy primer and acrylic topcoat are applied in the desired colors with appropriate film thickness. |
Optional Highlights
|
|
|
Wheel Base (mm) - WB |
3.180 mm |
3.480 mm |
3.780 mm |
4.080 mm |
|
Fifth Wheel Height (mm) – H5 |
1.220 mm |
1.220 mm |
1.220 mm |
1.220 mm |
|
Total Lenght (mm) - LO |
8.150 mm |
8.450 mm |
8.750 mm |
9.400 mm |
|
Dry Weight (kg) |
Min: 6.400 kg Max: 7.300 kg |
Min: 6.600 kg Max: 7.500 kg |
Min: 6.750 kg Max: 7.650 kg |
Min: 7.600 kg Max: 9.500 kg |
|
Permissible Total Weight (kg) |
40.000 kg |
40.000 kg |
40.000 kg |
40.000 kg |
